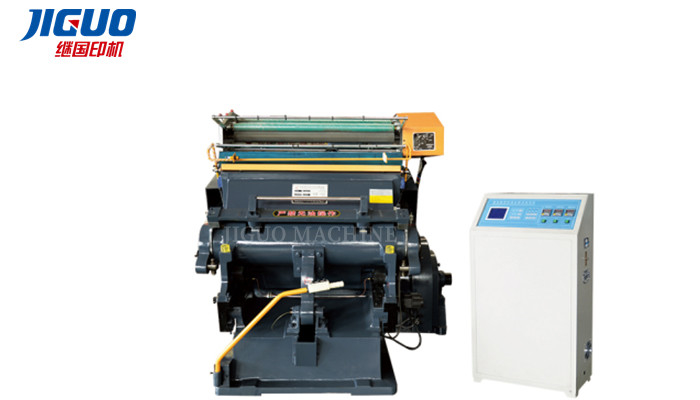

Computer Programmed Creasing And Die Cutting Machine Stamping

Computer Programmed Creasing And Die Cutting Machine Stamping
Computer Programmed Creasing And Die Cutting Machine Stamping Computer Programmed Creasing And Die Cutting Machine Stamping

Large Image :  Computer Programmed Creasing And Die Cutting Machine Stamping

Product Details:
Place of Origin: China
Brand Name: JIGUO
Certification: CE, ISO9001
Model Number: TYMB-750
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD11000-12000/set
Packaging Details: wooden case
Delivery Time: 20days
Payment Terms: L/C, T/T
Supply Ability: 100sets per month

Computer Programmed Creasing And Die Cutting Machine Stamping

Description
Product Name: Computer Programmed Die Cutting & Stamping Machine Usage:: Cardboard, Corrugated Board,firbboard, Plastic,PVC, Leather
Max. Sheet Size: 750X520 Max.Foil Stamping Size: 740*510
Foil Roller Number: 3 Rollers Foil-Delivered Length: 640mm
High Light:

programmed creasing and die cutting machine

,

750X520mm creasing and die cutting machine

,

JIGUO die stamping machine

JIGUO TYMB-750 Computer programmed Die cutting & stamping machine Die Cutting Creasing Machine



Hot stamping and Die cutting Machines are new generation products with high precision and marked effect. They are used for hot stamping all kinds of colored aluminum foil and embossing upon pictures, advertisement samples, trade mark, covers of books, season greeting cards, packaging cartons, and high grade decoration and printing materials,etc.The suitable materials are including paper,cardboard,plastics and leather,etc.,So that they are ideal equipments for printing. Packaging and plastics fields.





Computer Programmed Creasing And Die Cutting Machine Stamping 0





Products Description​



Main Parameters
Model TYMB-750
Max. Sheet Size 750X520(mm)
Max.Foil Stamping Size 740X510(mm)
Foil Roller Number 3 Rollers
Foil-Delivered Length
640mm
Heating Plate Zone Number 2 Zone
Range of Skip order

0-99 time

Machine Speed (Strokes/Min) 25±2
Motor Power(kw) 4KW
Total Power (kw) 13KW
Machine Pressure 170 Tons
Total weight 2000kg
Dimension 2220*1830*2000mm



Main features of Top quality ML Computer Programmed Hot Foil Stamping Die Cutting & Creasing Machine



* High strength due to one piece casting by using top-ranking material for machine body.



* Single plate electromagnetic clutch is sensitive and reliable.



* Computer controlled is stable.



* Operation position is reasonably arranged,moving-bed can be opened to its optimum.



* Skipping is accurate,so as to save foils.



* With three functions of continuous creasing and cutting,openingd well operation and closing dwell operation and a large dwell adjusting range.



* Safety system is reliable.



* Central lubrication system guarantees fine lubrication and reduce friction.





We have full series die cutting machine as your refer:



No. Model No. Max. sheet Size(mm) Weight (kg)
1 TYMB-750 750X520 2000kg
2 TYMB-930 930X670 3000kg
3 TYMB-1100 1100X800
4000kg
4 TYMB-1300 1300X920 5600kg
5 TYMB-1500 1500X1050 6800kg



Computer Programmed Creasing And Die Cutting Machine Stamping 1



Computer Programmed Creasing And Die Cutting Machine Stamping 2



Computer Programmed Creasing And Die Cutting Machine Stamping 3



FAQ

1.Q: Are you trading company or manufacturer?

A: We are manufacturer, and also provide the business solution to all the friends.



2. Q: What is your delivery time ?

A: Normal delivery time is 30-55working days beside less stock model after received your deposit .



3. Q: Can you help us to buy other goods?

A: Sure of that, it is our honor to work for you, and control the goods quality.



4. Q: How was your machine warranty ?

A: our all machines has one year (12 monthes) guarantee. Beside guarantee we will supply cost spare parts and free maintenance knowledge .



5. Q: How can you do after sales service ?

A: beside the quality guarantee, our company also regards the after sales service, using a full arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24 hours on phone / on site technical support / on site service / preventive maintenance also training again.



6. Q: What’s your payment terms ?

A: 30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also accepted for us .
