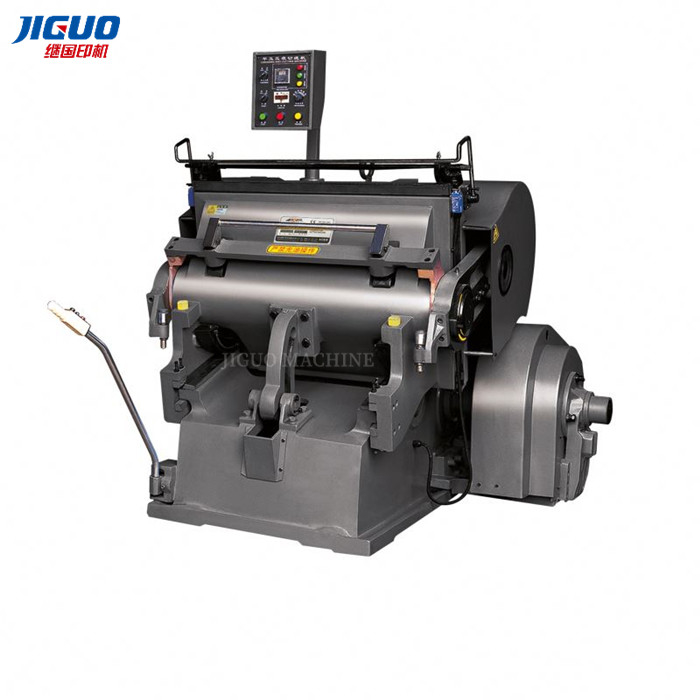

Firb Board Die Cutting Creasing Machine Manual Corrugated Cardboard Machine

Firb Board Die Cutting Creasing Machine Manual Corrugated Cardboard Machine
Firb Board Die Cutting Creasing Machine Manual Corrugated Cardboard Machine Firb Board Die Cutting Creasing Machine Manual Corrugated Cardboard Machine Firb Board Die Cutting Creasing Machine Manual Corrugated Cardboard Machine

Large Image :  Firb Board Die Cutting Creasing Machine Manual Corrugated Cardboard Machine

Product Details:
Place of Origin: China
Brand Name: JIGUO
Certification: CE, ISO9001
Model Number: ML-2500
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD5000-15000/set
Packaging Details: wooden case
Delivery Time: 20days
Payment Terms: L/C, T/T
Supply Ability: 100sets per month

Firb Board Die Cutting Creasing Machine Manual Corrugated Cardboard Machine

Description
Product Name: ML Series Manual Die Cutting & Creasing Machin Usage:: Cardboard, Corrugated Board,firbboard, Plastic,PVC, Leather
Key Selling Points: Easy To Operate Max. Sheet Size: 2500*1600
Dimension(L*W*H):: 2400*2800*2230mm Type: Die Cutting Machine
High Light:

ML 2500 Die Cutting Creasing Machine

,

firb board Die Cutting Creasing Machine

,

2500mm Manual Corrugated Cardboard Machine

JIGUO ML-2500 Heavy Model Manual Die Cutting And Creasing Machine Corrugated Cardboard Machine



Applications
Our die-cutting and creasing machine are available for many materials, such as cardboard, corrugated board, plastic and leather.
They are wildly used in printing, package, decoration industry.



Function


1. Equip with four insurance parts and four functions. The insurance part including gantry insurance, triangle insurance, hand shank insurance and automatic light-operated insurance to makes the machine safety and reliable.


2. The brake clutch adopts electric suction plate brake clutch to keep the braking sensitive and reliable.


3. Adjustable template makes the plate loading, unloading more easily.


4. Three functions including single piece pressing cutting, continuous pressing cutting and time-delay when start machine, the delay time can be adjusted, the time can be adjusted from 0.1s to 9.9s.



Features



* Sliding bearings are made of high quality alloy cooper, thus to get effect of anti-frietion and shake reducing.


* Flywheel is with big mlomentof force and heavy pressure.


* High strength due to one piece casting by using top-ranking material for machine frame.


* Single plate electromagnetic clutch is sensitive and reliable.


* With functions of single, continuous and opening dwell operation, dwell range is adjustable.


* Operating position is reasonably arranged, moving-bed can be opened to its optimum.


* Safety system is reliable.



Products Description​



PARAMETER
Model ML-2500
Max. sheet size 2500X1600(mm)
Machine speed(Strokes/Min) 13±2
Max.Rule Length(m) <95m
Motor Power(kw) 22KW
Total weight 20000KG
Machine Dimension

3580*3400*2550mm



Firb Board Die Cutting Creasing Machine Manual Corrugated Cardboard Machine 0

Firb Board Die Cutting Creasing Machine Manual Corrugated Cardboard Machine 1



We have full series die cutting machine as your refer:



No. Model No. Max. sheet Size(mm) Weight (kg)
1 ML-750 750*520 2000
2 ML-930 930*660 3000
3 ML-1100 1100*800 4000
4 ML-1200 1200*820 4300
5 ML-1300 1300*920 5500
6 ML-1400 1400*1000 6000
7 ML-1500 1500*1050 6500
8 ML-1500L 1500*1150 6800
9 ML-1600 1600*1250 11000
10 ML-1800 1800*1300 12000
11 ML-2000 2000*1400 13500
12 ML-2500 2500*1600 20000





Firb Board Die Cutting Creasing Machine Manual Corrugated Cardboard Machine 2



Firb Board Die Cutting Creasing Machine Manual Corrugated Cardboard Machine 3



FAQ

1.Q: Are you trading company or manufacturer?

A: We are manufacturer, and also provide the business solution to all the friends.



2. Q: What is your delivery time ?

A: Normal delivery time is 30-55working days beside less stock model after received your deposit .



3. Q: Can you help us to buy other goods?

A: Sure of that, it is our honor to work for you, and control the goods quality.



4. Q: How was your machine warranty ?

A: our all machines has one and half year (18monthes) guarantee. Beside guarantee we will supply cost spare parts and free maintenance knowledge .



5. Q: How can you do after sales service ?

A: beside the quality guarantee, our company also regards the after sales service, using a full arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24 hours on phone / on site technical support / on site service / preventive maintenance also training again.



6. Q: What’s your payment terms ?

A: 30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also accepted for us .
