Large Beer Manual Corrugated Paper Cutting Machine Cardboard Creasing

Certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
I'm Online Chat Now

Large Beer Manual Corrugated Paper Cutting Machine Cardboard Creasing

Large Beer Manual Corrugated Paper Cutting Machine Cardboard Creasing
Large Beer Manual Corrugated Paper Cutting Machine Cardboard Creasing Large Beer Manual Corrugated Paper Cutting Machine Cardboard Creasing Large Beer Manual Corrugated Paper Cutting Machine Cardboard Creasing

Large Image :  Large Beer Manual Corrugated Paper Cutting Machine Cardboard Creasing

Product Details:
Place of Origin: China
Brand Name: JIGUO
Certification: CE, ISO9001
Model Number: ML-2000
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD5000-15000/set
Packaging Details: wooden case
Delivery Time: 20days
Payment Terms: L/C, T/T
Supply Ability: 100sets per month

Large Beer Manual Corrugated Paper Cutting Machine Cardboard Creasing

Description
Product Name: ML Series Manual Die Cutting & Creasing Machin Usage:: Cardboard, Corrugated Board,firbboard, Plastic,PVC, Leather
Key Selling Points: Easy To Operate Weight: 13500Kg
Dimension(L*W*H):: 2400*2800*2230mm Type: Die Cutting Machine
Speed: 16±2(Strokes/Min) Max. Sheet Size: 2000X1400
High Light:

2400mm corrugated paper cutting machine

,

Large Beer corrugated paper cutting machine

,

ML 2000 manual die cutting machine

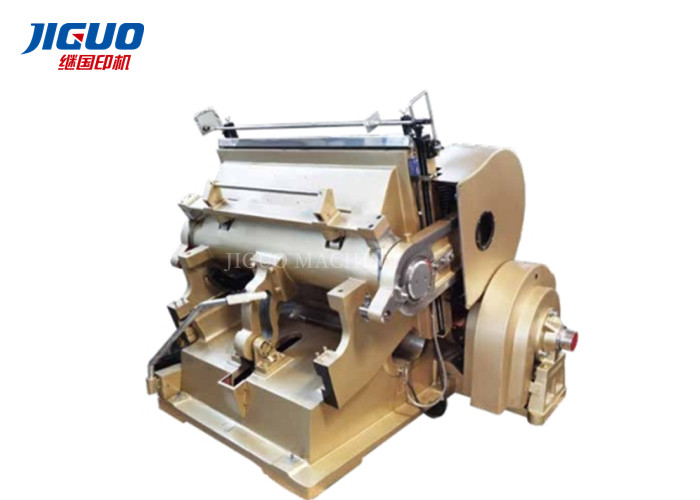

JIGUO ML-2000 Heavy Model Manual Die Cutting  And  Creasing Machine Large Beer Machine



Our ML-2000 Creasing and Die Cutting Machine is widely used in post-press industry, this platen converting paper, carton board, heavy solid board, semi-rigid plastic, corrugated into different product with high efficiency, such as food/beverage/ personal care/ home&office/ industrial package and so on.



Function characteristics


This machine is suitable for large area cutting and pressing ,which can be used to cut and
press paper board, corrugated paper board,piastics, leather,etc.Shuangling machines have
been acceptable for the customers from home and abroad ,due to their outstanding features,
high quality and good service.


Technical Parameters


High strength due to one piece casting by using top-ranging material for machine body.Sliding bearings are made of high quality alloy cooper,thus to get effect of anti-frietion and shake reducing.

With functions of single, continuous and opening dweel operation, dwell range is adjustable. Single plate electromagnetic clutch is sensitive and reliable . Flywheel is with big moment of force and large pressure .Operating position is reasonably arranged, moving-bed can be opennd to its optimum Central lubrication system guarantees fine lubrication and reduce friction. Safety system is reliable.



Products Description​



PARAMETER
Model ML-2000
Max. sheet size 2000X1400(mm)
Machine speed(Strokes/Min) 16±2
Max.Rule Length(m) <80m
Motor Power(kw) 15KW
Total weight 13500KG
Machine Dimension

2280*2900*2230mm



Large Beer Manual Corrugated Paper Cutting Machine Cardboard Creasing 0



We have full series die cutting machine as your refer:



No. Model No. Max. sheet Size(mm) Weight (kg)
1 ML-750 750*520 2000
2 ML-930 930*660 3000
3 ML-1100 1100*800 4000
4 ML-1200 1200*820 4300
5 ML-1300 1300*920 5500
6 ML-1400 1400*1000 6000
7 ML-1500 1500*1050 6500
8 ML-1500L 1500*1150 6800
9 ML-1600 1600*1250 11000
10 ML-1800 1800*1300 12000
11 ML-2000 2000*1400 13500
12 ML-2500 2500*1600 20000





Large Beer Manual Corrugated Paper Cutting Machine Cardboard Creasing 1



Large Beer Manual Corrugated Paper Cutting Machine Cardboard Creasing 2



FAQ

1.Q: Are you trading company or manufacturer?

A: We are manufacturer, and also provide the business solution to all the friends.



2. Q: What is your delivery time ?

A: Normal delivery time is 30-55working days beside less stock model after received your deposit .



3. Q: Can you help us to buy other goods?

A: Sure of that, it is our honor to work for you, and control the goods quality.



4. Q: How was your machine warranty ?

A: our all machines has one and half year (18monthes) guarantee. Beside guarantee we will supply cost spare parts and free maintenance knowledge .



5. Q: How can you do after sales service ?

A: beside the quality guarantee, our company also regards the after sales service, using a full arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24 hours on phone / on site technical support / on site service / preventive maintenance also training again.



6. Q: What’s your payment terms ?

A: 30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also accepted for us .
