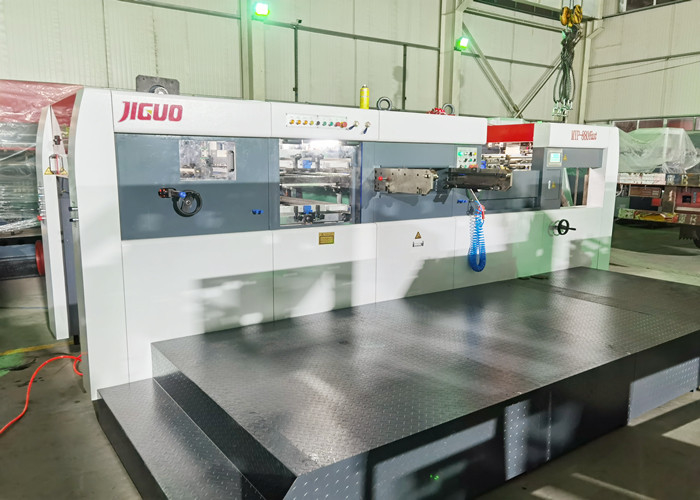

10000s/H Automatic Die Cutting Machine 320×240mm Paper Creasing Machine

10000s/H Automatic Die Cutting Machine 320×240mm Paper Creasing Machine
10000s/H Automatic Die Cutting Machine 320×240mm Paper Creasing Machine 10000s/H Automatic Die Cutting Machine 320×240mm Paper Creasing Machine 10000s/H Automatic Die Cutting Machine 320×240mm Paper Creasing Machine 10000s/H Automatic Die Cutting Machine 320×240mm Paper Creasing Machine 10000s/H Automatic Die Cutting Machine 320×240mm Paper Creasing Machine 10000s/H Automatic Die Cutting Machine 320×240mm Paper Creasing Machine

Large Image :  10000s/H Automatic Die Cutting Machine 320×240mm Paper Creasing Machine

Product Details:
Place of Origin: China
Brand Name: JIGUO
Certification: CE, ISO9001
Model Number: MY-800H
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD100000-170000/set
Packaging Details: wrapping film
Delivery Time: 50days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50sets per month

10000s/H Automatic Die Cutting Machine 320×240mm Paper Creasing Machine

Description
Max.paper Size: 810×610mm Min.paper Size: 320×240mm
Max.cutting Size: Max.cutting Size Max.working Speed: 8500s/h
Die Cutting Precision: ±0.1mm Corrugated Board: ≤4mm
Cardboard: 80-600gsm Solid Board: Up To 2000gsm
Plastic Board: 0.1-1.5mm
High Light:

Automatic Die Cutting Machine

,

paper Automatic Die Cutting Machine

,

die cutting creasing machine

MY-880Fast/MY-1050Fast Automatic Die-Cutting Creasing Machine High Speed 10000s/h



The enlarged paper feeding head (Feeder head) has 9 suction nozzles applicable for paper in different thicknesses and 5 paper feeding nozzles which can be independently adjusted for parallel paper feeding. It also has 4 paper lifting nozzles which can move up and down in a large stroke especially applicable for small corrugated paper. The large power wind pump provides a high suction force. It can be conveniently adjusted; paper can be divided reliable, and it runs fast and stably. By the special secondary paper feeding and preliminary paper stacking, the primary and secondary can be shifted to ensure uninterrupted paper feeding.



Details Specifications:

Model MY-880Fast MY-1050Fast
Max.paper size 880×610mm 1060×760mm
Min.paper size 320×240mm 400×360mm
Max.cutting size 860×590mm 1040×740mm
Max.working speed 10000s/h 10000s/h
Die Cutting Precision ±0.1mm ±0.1mm
Sheet thickness

Corrugated board ≤4mm

Cardboard:80-600gsm;Solid board up 2000gsm, Plastic board: 0.1-1.5mm

Corrugated board ≤4mm

Cardboard:80-600gsm;Solid board up 2000gsm, Plastic board: 0.1-1.5mm

Max.pressure 250 Tons 350 Tons
Max. Feeding Pile 1400mm 1600mm
Max. Delivery Pile 1100mm 1400mm
Total power 15 KW 21 KW
Net weight 11 Tons 17 Tons
Air requirement 0.8Mpa,>0.36m³/min 0.8Mpa,>0.36m³/min
Overall dimension 5600×3500×2000 mm (5100+1450)×(2280+1850)×(2230+670)mm





Advantages of our die-cutting machine:



1. Paper Conveying Unit

  • The paper conveying part is made of stainless steel plate to prevent rust and provide stable and correct paper conveying.
  • The incline-type paper moving table top is more suitable to high-speed thin paper and location.
  • Paper is positioned by a pushing unit and a pulling unit which can be shifted conveniently for different specifications of paper.
  • It could switch front rise position arriving reduction of speed device, it is benefit if thin paper’s location.

2. Die Cutting Unit

  • The cast wall plate is rejected because of its low pulling force but high deformation, and steel wall plate is applied like Japan machines. The pulling force is enlarged, i.e. the pressing force is enlarged, and it becomes firm and endurable without any deformation.
  • This machine is upgraded to a brand high level by the automatic pressure regulation and automatic front scale regulation. The addition of this function upgrades it into a convenient and favorable digital device with high controlling speed.
  •
  • The oil route is forcibly lubricated by a HP oil pump as made in Taiwan to reduce wearing, an oil cooler is added to cool the lubricating oil, and the main chain is lubricated timely to improve the operation efficiency.
  • The novel transmission mechanism provides high speed die-cutting, and the highly precise swing link platform improves the padding speed (almost without padding), as it is known the pressure can be hardly balanced in most of other common machines.
  •
  • The pneumatic plate locking unit can fix the upper frame more firmly and faster. In our die-cutting machine, the front, back, left and right are pneumatically locked simultaneously to realize a high correctness and a high speed. However, common machines are tightened by screws.
  •
  • The paper holding rack chain is imported from Germany, which provides a long service life and a stable die-cutting precision.
  • The Japan intermittent mechanism is the main transmission part of the die-cutting machine, and it improves the die-cutting speed and precision and reduces the device noise, while the speed and precision cannot be realized by any domestic mechanism.
  • The torque limiter is equipped with overload protection. The primary and secondary units can be separated at any overload to ensure the machine can be operated safely. The Italian pneumatic brake and clutch with Japan SMC rotary joint comply with the European standard. They provide fast clutching, high and stable force, long service life and low noise.

3. Paper Collecting Unit

  • Paper can be collected automatically and orderly.
  • The efficiency is improved by an uninterrupted paper collecting grid plate, and when paper is stacked to the specified height, the paper collecting grid plate will be replaced by another plate for uninterrupted paper collecting.
  • By the pneumatic sampling, the die-cut paper can be conveniently inspected at any time.

4. Electrical Control Unit

  • The electrical control system is Japan Omron PLC computer automatic control for fully detecting and controlling, and the Japan frequency converter with Taiwan main motor provides high power for paper feeding, paper conveying, die-cutting, and paper collecting.
  • The human-machine interface can display various working conditions, indicate fault positions and give solutions.
  • The machine is equipped with various safety protection units. A visible and audible alarm will be given at any fault, and the machine will be automatically shut down to protect personal and device safety
  • 10000s/H Automatic Die Cutting Machine 320×240mm Paper Creasing Machine 0

10000s/H Automatic Die Cutting Machine 320×240mm Paper Creasing Machine 1

10000s/H Automatic Die Cutting Machine 320×240mm Paper Creasing Machine 2



10000s/H Automatic Die Cutting Machine 320×240mm Paper Creasing Machine 3

10000s/H Automatic Die Cutting Machine 320×240mm Paper Creasing Machine 4
