Cardboard Manual Platen Die Punching Machine Ml 1300 Die Cutting Machine Heavy Duty

Cardboard Manual Platen Die Punching Machine Ml 1300 Die Cutting Machine Heavy Duty
Cardboard Manual Platen Die Punching Machine Ml 1300 Die Cutting Machine Heavy Duty Cardboard Manual Platen Die Punching Machine Ml 1300 Die Cutting Machine Heavy Duty Cardboard Manual Platen Die Punching Machine Ml 1300 Die Cutting Machine Heavy Duty

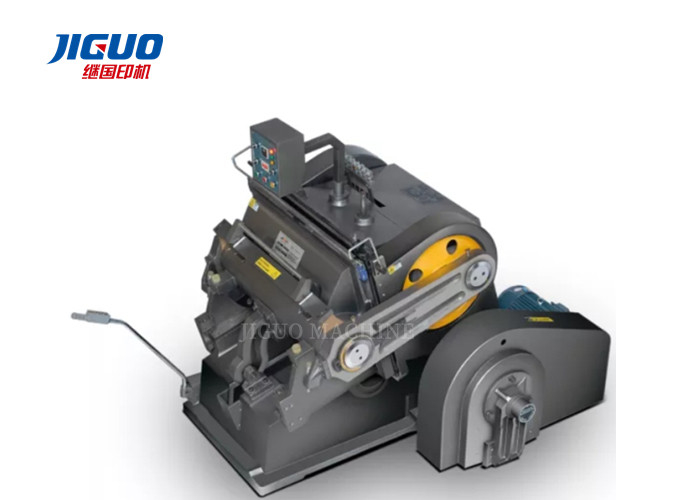

Large Image :  Cardboard Manual Platen Die Punching Machine Ml 1300 Die Cutting Machine Heavy Duty

Product Details:
Place of Origin: China
Brand Name: JIGUO
Certification: CE, ISO9001
Model Number: ML-1300
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD5000-15000/set
Packaging Details: wooden case
Delivery Time: 20days
Payment Terms: L/C, T/T
Supply Ability: 100sets per month

Cardboard Manual Platen Die Punching Machine Ml 1300 Die Cutting Machine Heavy Duty

Description
Product Name: MLSeries Manual Die Cutting & Creasing Machin Usage:: Cardboard, Corrugated Board,firbboard, Plastic,PVC, Leather
Key Selling Points: Easy To Operate Voltage: 220V
Warranty Of Core Components:: 1year Machine Speed(Strokes/Min): 18±2
High Light:

platen die punching machine

,

Manual platen die punching machine

,

ml 1300 die cutting machine

                 JIGUO ML-1300 Hot Sale Platen Punching

                 Manual Die Cutting And Creasing Machine







Products Description​

PARAMETER
Model ML-1300
Max. sheet size 1300X920(mm)
Machine speed(Strokes/Min) 18±2
Max.Rule Length(m) <40m
Motor Power(kw) 7.5KW
Total weight 5500KG
Machine Dimension

2000*2400*1800mm



Product Application

"JIGUO"serial die-cutting and creasing machine are available for many materials,such as

cardboard,corrugated board,plastic and leather.They are wildly used in printing,package,

decoration industry."JIGUO" products are sold well in the global due to its high quality

and good service.



Features:
1. It is characterized by compact structure, fine workmanship, high pressure, high precision
and easy and reliable operation.
2.High strength due to whole body casting with high quality material.
3. Smooth running, high pressure and low noise with 4-step helical gear mechanism.
4. Single plate electromagnetic clutch is sensitive and reliable.
5. Electrical system is designed in conformity with IEC standard.
6. The functions of single operation, continuous operation and opening delay are available;

delay range is adjustable.
7. Reliable safety system. Concentrated lubricating system.
8. The lubrication system of centralized refueling and manual refueling (optional) can better

guarantee the smooth oil path and facilitate the maintenance of the lubrication system.



We have full series die cutting machine as your refer:



No. Model No. Max. sheet Size(mm) Weight (kg)
1 ML-750 750*520 2000
2 ML-930 930*660 3000
3 ML-1100 1100*800 4000
4 ML-1200 1200*820 4300
5 ML-1300 1300*920 5500
6 ML-1400 1400*1000 6000
7 ML-1500 1500*1050 6500
8 ML-1500L 1500*1150 6800
9 ML-1600 1600*1250 11000
10 ML-1800 1800*1300 12000
11 ML-2000 2000*1400 13500
12 ML-2500 2500*1600 20000



Cardboard Manual Platen Die Punching Machine Ml 1300 Die Cutting Machine Heavy Duty 0

Cardboard Manual Platen Die Punching Machine Ml 1300 Die Cutting Machine Heavy Duty 1



Cardboard Manual Platen Die Punching Machine Ml 1300 Die Cutting Machine Heavy Duty 2



Cardboard Manual Platen Die Punching Machine Ml 1300 Die Cutting Machine Heavy Duty 3



Cardboard Manual Platen Die Punching Machine Ml 1300 Die Cutting Machine Heavy Duty 4



Cardboard Manual Platen Die Punching Machine Ml 1300 Die Cutting Machine Heavy Duty 5



Cardboard Manual Platen Die Punching Machine Ml 1300 Die Cutting Machine Heavy Duty 6



Cardboard Manual Platen Die Punching Machine Ml 1300 Die Cutting Machine Heavy Duty 7



FAQ

1.Q: Are you trading company or manufacturer?

A: We are manufacturer, and also provide the business solution to all the friends.

2. Q: What is your delivery time ?

A: Normal delivery time is 30-55working days beside less stock model after received your deposit .

3. Q: Can you help us to buy other goods?

A: Sure of that, it is our honor to work for you, and control the goods quality.

4. Q: How was your machine warranty ?

A: our all machines has one and half year (18monthes) guarantee. Beside guarantee we will supply

cost spare parts and free maintenance knowledge .

5. Q: How can you do after sales service ?

A: beside the quality guarantee, our company also regards the after sales service, using a full

arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24
hours on phone / on site technical support / on site service / preventive maintenance also training
again.

6. Q: What’s your payment terms ?

A: 30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are

also accepted for us .
