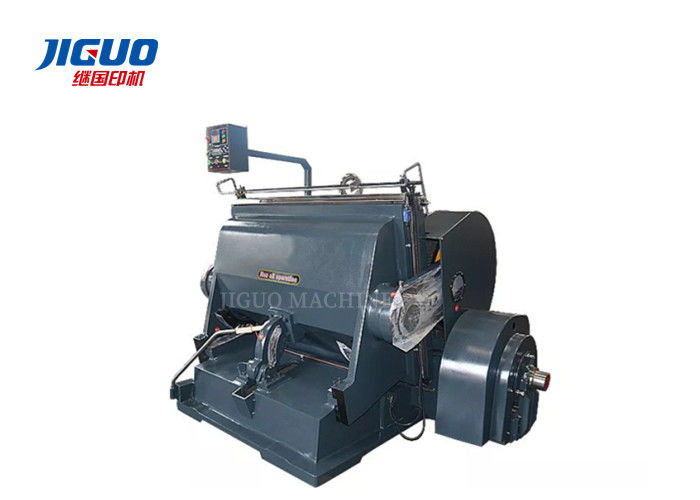

Manual Creasing Die Cutting Machine Corrugated Boxes Ml 1100 Die Cutting Machine

Manual Creasing Die Cutting Machine Corrugated Boxes Ml 1100 Die Cutting Machine
Manual Creasing Die Cutting Machine Corrugated Boxes Ml 1100 Die Cutting Machine Manual Creasing Die Cutting Machine Corrugated Boxes Ml 1100 Die Cutting Machine Manual Creasing Die Cutting Machine Corrugated Boxes Ml 1100 Die Cutting Machine Manual Creasing Die Cutting Machine Corrugated Boxes Ml 1100 Die Cutting Machine

Large Image :  Manual Creasing Die Cutting Machine Corrugated Boxes Ml 1100 Die Cutting Machine

Product Details:
Place of Origin: China
Brand Name: JIGUO
Certification: CE, ISO9001
Model Number: ML-1100
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD5000-9000/set
Packaging Details: wooden case
Delivery Time: 20days
Payment Terms: L/C, T/T
Supply Ability: 100sets per month

Manual Creasing Die Cutting Machine Corrugated Boxes Ml 1100 Die Cutting Machine

Description
Product Name: MLSeries Manual Die Cutting & Creasing Machin Usage:: Cardboard, Corrugated Board,firbboard, Plastic,PVC, Leather
Key Selling Points: Easy To Operate Voltage: 220V/380V/440v
Warranty Of Core Components:: 1year
High Light:

ML 1100 Manual Die Cutter

,

Creasing Manual Die Cutter

,

ml 1100 die cutting machine

        JIGUO ML-1100 Manual Die Cutting And Creasing Machine

                                   Carton Box Die Cutter



Manual Creasing Die Cutting Machine Corrugated Boxes Ml 1100 Die Cutting Machine 0



Products Description​

PARAMETER
Model ML-1100
Max. sheet size 1100X800(mm)
Machine speed(Strokes/Min) 20±2
Max.Rule Length(m) <32m
Motor Power(kw) 5.5KW
Total weight 4000KG
Machine Dimension

1900*1800*1700mm



Product Application
"JIGUO"serial die-cutting and creasing machine are available for many materials,such as

cardboard,corrugated board,plastic and leather.They are wildly used in printing,package,

decoration industry."JIGUO" products are sold well in the global due to its high quality

and good service.



Main Features
1) Equip with four insurance parts and four functions. The insurance part including gantry

insurance, triangle insurance, hand shank insurance and automatic light-operated insurance to

makes the machine safety and reliable.
2)The brake clutch adopts electric suction plate brake clutch to keep the braking sensitive and

reliable.
3)Adjustable template makes the plate loading, unloading more easily. Disposition: Centralized

oil supplying.
4) Three functions including single piece pressing cutting, continuous pressing cutting and

time-delay when start machine, the delay time can be adjusted.



We have full series die cutting machine as your refer:

No. Model No. Max. sheet Size(mm) Weight (kg)
1 ML-750 750*520 2000
2 ML-930 930*660 3000
3 ML-1100 1100*800 4000
4 ML-1200 1200*820 4300
5 ML-1300 1300*920 5500
6 ML-1400 1400*1000 6000
7 ML-1500 1500*1050 6500
8 ML-1500L 1500*1150 6800
9 ML-1600 1600*1250 11000
10 ML-1800 1800*1300 12000
11 ML-2000 2000*1400 13500
12 ML-2500 2500*1600 20000



Manual Creasing Die Cutting Machine Corrugated Boxes Ml 1100 Die Cutting Machine 1



Manual Creasing Die Cutting Machine Corrugated Boxes Ml 1100 Die Cutting Machine 2



Manual Creasing Die Cutting Machine Corrugated Boxes Ml 1100 Die Cutting Machine 3



Manual Creasing Die Cutting Machine Corrugated Boxes Ml 1100 Die Cutting Machine 4



FAQ

1.Q: Are you trading company or manufacturer?

A: We are manufacturer, and also provide the business solution to all the friends.

2. Q: What is your delivery time ?

A: Normal delivery time is 30-55working days beside less stock model after received your deposit .

3. Q: Can you help us to buy other goods?

A: Sure of that, it is our honor to work for you, and control the goods quality.

4. Q: How was your machine warranty ?

A: our all machines has one and half year (18monthes) guarantee. Beside guarantee we will supply

cost spare parts and free maintenance knowledge .

5. Q: How can you do after sales service ?

A: beside the quality guarantee, our company also regards the after sales service, using a full

arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24
hours on phone / on site technical support / on site service / preventive maintenance also training
again.

6. Q: What’s your payment terms ?

A: 30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are

also accepted for us .
