Product Details:
|
| Product Name: | MLSeries Manual Die Cutting & Creasing Machin | Usage:: | Cardboard, Corrugated Board,firbboard, Plastic,PVC, Leather |
|---|---|---|---|
| Key Selling Points: | Easy To Operate | Voltage: | 220V/380V/440v |
| Warranty Of Core Components:: | 1year | Max. Sheet Size: | 750X520 |
| High Light: | ML 750 Die Cutting Creasing Machine,corrugated carton Die Cutting Creasing Machine,ml 750 die cutting machine |
||

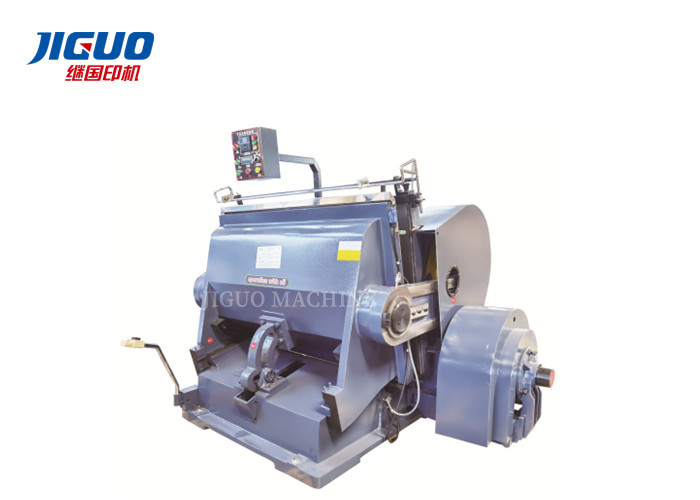

JIGUO ML-750 Manual Die Cutter Corrugation Carton Die Cutting Creasing Machine
Specifications
This kind of series machine combines functions of creasing and die-cutting. It is special equipment for creasing and cutting ordinary cardboard, corrugated board, plastic and leather, which is applicable to printing, packaging, decoration and plastic industries.
It is characterized by compact structure, fine workmanship, large pressure, high precision, easy operation, reliable performance, etc.
Features
1. It is characterized by compact structure, fine workmanship, high pressure, high precision and easy and reliable operation.
2.High strength due to whole body casting with high quality material.
3. Smooth running, high pressure and low noise with 4-step helical gear mechanism.
4. Single plate electromagnetic clutch is sensitive and reliable.
5. Operational altitude is reasonably arranged, moving-bed opens to its maximum.
6. Electrical system is designed in conformity with IEC standard.
7. The functions of single operation, continuous operation and opening delay are available;delay range is adjustable.
8. Reliable safety system. Concentrated lubricating system.
9. The lubrication system of centralized refueling and manual refueling (optional) can better guarantee the smooth oil path and facilitate the maintenance of the lubrication system.
10. The shaft sleeve of the transmission part adopts compound copper sleeve (to ensure lubrication) and pure copper copper sleeve of the connecting rod.Make the machine more precise.
Products Description
| PARAMETER | |
| Model | ML-750 |
| Max. sheet size | 750X520(mm) |
| Machine speed(Strokes/Min) | 28±2 |
| Max.Rule Length(m) | <15m |
| Motor Power(kw) | 2.2KW |
| Total weight | 2000KG |
|
Machine Dimension
|
1260*1350*1280mm |
.
We have full series die cutting machine as your refer:
| No. | Model No. | Max. sheet Size(mm) | Weight (kg) |
| 1 | ML-750 | 750*520 | 2000 |
| 2 | ML-930 | 930*660 | 3000 |
| 3 | ML-1100 | 1100*800 | 4000 |
| 4 | ML-1200 | 1200*820 | 4300 |
| 5 | ML-1300 | 1300*920 | 5500 |
| 6 | ML-1400 | 1400*1000 | 6000 |
| 7 | ML-1500 | 1500*1050 | 6500 |
| 8 | ML-1500L | 1500*1150 | 6800 |
| 9 | ML-1600 | 1600*1250 | 11000 |
| 10 | ML-1800 | 1800*1300 | 12000 |
| 11 | ML-2000 | 2000*1400 | 13500 |
| 12 | ML-2500 | 2500*1600 | 20000 |
FAQ
1.Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to all the friends.
2. Q: What is your delivery time ?
A: Normal delivery time is 30-55working days beside less stock model after received your deposit .
3. Q: Can you help us to buy other goods?
A: Sure of that, it is our honor to work for you, and control the goods quality.
4. Q: How was your machine warranty ?
A: our all machines has one and half year (18monthes) guarantee. Beside guarantee we will supply cost spare parts and free maintenance knowledge .
5. Q: How can you do after sales service ?
A: beside the quality guarantee, our company also regards the after sales service, using a full arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24 hours on phone / on site technical support / on site service / preventive maintenance also training again.
6. Q: What’s your payment terms ?
A: 30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also accepted for us .
