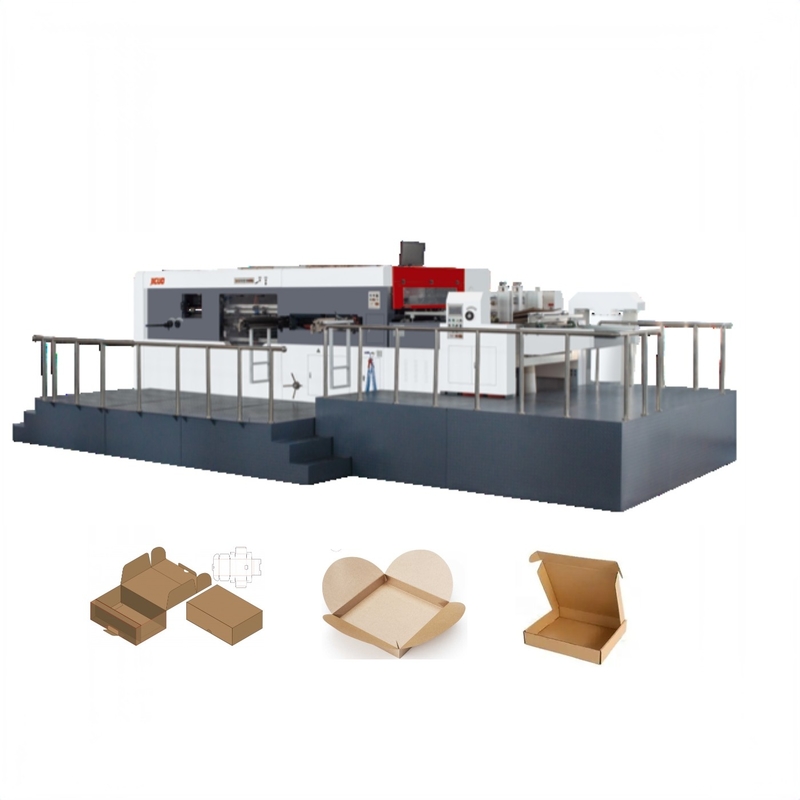

Product Details:
|
| Weight: | 24T | Warranty: | 1 Year |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation | Dimension(l*w*h): | 8000*5450*2500mm |
| Type: | Die-cutting Machine,Paper Cutting Machine | Computerized: | Yes |
| Power(w): | 26KW | Name: | Die Cutting Machine |
| High Light: | Lead Edge automatic paper creasing machine,pneumatic automatic paper creasing machine,\feeding die cutting machine |
||
Advantage
A. Adopts bottom-fed feeder, scratches can be avoided during feeding. Lead edge feeder.
Frequency conversion control wind volume adjustment. Wind suction can be adjustable according
to the paperboard size with high-power fans.
B. Adopts left and right push side lay to fulfill different printing registration requirement. Adjustable
rubber wheel and brush wheel to ensure precise positioning to enter into front and side lay.
C. Adopts pneumatic lock-up system on die cutting chase to increase efficiency. Computerized
control display system and 3D touch screen operation can immediately trace and visualize
machine status and possible machine stop causes. Equipped with 3 cam index box device and
overloading protection clutch for perfect registration
D. Double-action movement structure with upper and lower stripping frame facilitates die changes,
motorized upper frame suspending hoist. Male/female die are available for different stripping jobs.
Equipped with full stripping device for higher production efficiency. Adopts centerline registration
system, reduce die change time, accurate positioning can increase production efficiency.
E. Adopts non-stop delivery system to insure paper delivery stable and fast. Safety photo-electric
devices to insure paper delivery tidy.
F. Siemens variable frequency speed control main motor, Japan Futian inverter, give the machine
output stable and reliable power.Automatic control and real-time detection of processes from
paper feeding, paper feeding, die cutting and delivery, using PLC and HMI control.Human-machine
interface display system can display various working conditions in real time, multi-tone speaker
alarm when a fault occurs, and automatically stop, truly guaranteeing human-machine safety.
Products Description
| PARAMETER | |
| Model | MY-1680Q |
| Max. sheet size | 1680X1235(mm) |
| Min. sheet size | 580X500(mm) |
| Max. die cutting size | 1660X1220(mm) |
| Max.cutting speed | 5000s/h |
| Sheet Thickness | ≤10mm |
| Max.pressure | 480T |
| Total power | 26kw |
| Net weight | 24T |
| Overall dimension | 8000X5450X2500mm |
| Air requirements | 0.8Mpa,>0.36m³/min |
FAQ
1. Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to all the friends.
2. Q: What is your delivery time ?
A: Normal delivery time is 30-55working days beside less stock model after received your deposit .
3. Q: Can you help us to buy other goods?
A: Sure of that, it is our honor to work for you, and control the goods quality.
4. Q: How was your machine warranty ?
A: Our all machines has one and half year (18mouthes) guarantee. Beside guarantee we will supply
cost spare parts and free maintenance knowledge .
5. Q: How can you do after sales service ?
A: Beside the quality guarantee, our company also regards the after sales service, using a full
arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24
hours on phone / on site technical support / on site service / preventive maintenance also training
again.
6. Q: What’s your payment terms ?
A: 30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also
accepted for us .
