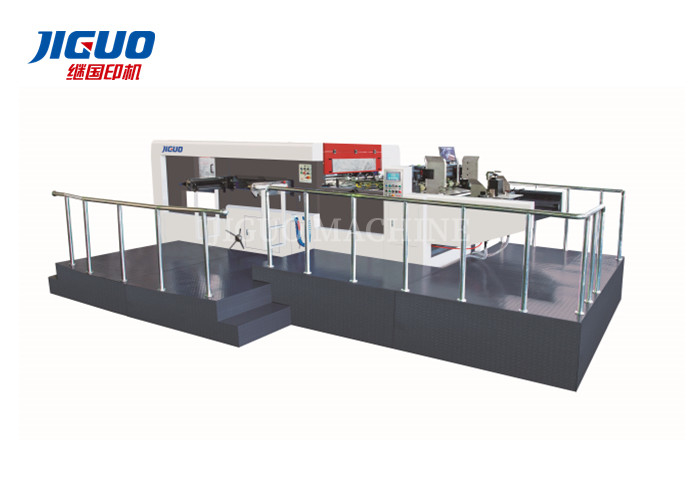

Product Details:
|
| Weight: | 20T | Warranty: | 1 Year |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation | Dimension(l*w*h): | 6750*4600*2260mm |
| Type: | Die-cutting Machine,Paper Cutting Machine | Computerized: | Yes |
| Power(w): | 25KW | Name: | Die Cutting Machine |
| High Light: | Bottom Suction Automatic Paper Die Cutting Machine,Automatic Paper Die Cutting Machine,Nozzle Lead feeding die cutting machine |
||
Product Description
01. The paper feeding transmission adopts the mechanical transmission of the main machine , which is stable in operation ; the paper feeding efficiency is very high without stopping ; the unique anti scratch mechanism is adopted and the scratches of paper surface can be reduced effectively ; the paper feeding is controlled by the servo motor , which is stable in paper feeding and precision in positioning .
02. The key parts of the machine ,
such as the bottom platform , moving platform , upper platform and wall panel are made of high - strength nodular cast iron , which are not easy to deform when working under high pressure . It is processed by a large imported five sided machining center at one time , which can ensure the accuracy and durability of the components .
03. The machine adopts precise worm and crankshaft connecting rod mechanism to make the transmission stable . All of them are made of high - grade alloy material . Large imported machine tools are used for confidential grinding and processing with stable operation , large die - cutting pressure and high point pressure maintaining function .
Features
04. High resolution touch screen is adopted for human - computer interaction ; PLC program control and fault monitoring system cooperate with LCD screen , which is convenient for staff to monitor machine operation and solve problems in time.
05. The tooth row body is made of special super hard aluminum alloy profile with anodized surface , strong rigidity , light weight and small inertia , which can complete accurate die cutting and control in high speed movement . The chain adopts imported ones , which can ensure the machine operation accuracy .
06. High quality pneumatic clutch with long service life , low noise , stable braking , quick clutch and large transmission power , which can make the performance of machine more stable and durable .
07. Adopt the paper receiving platform to receive paper , the paper pile will automatically descend and when the paper full , it will alarm and decelerate automatically . Compared with automatic paper cleaning device , it can ensure the stable operation , simple adjustment and tidy paper receiving . Anti - paper back photoelectric detection switch can prevent the paper pile too high and paper roll up in the paper receiving platform .
Products Description
| PARAMETER | |
| Model | MY-1320X |
| Max. sheet size | 1320X960(mm) |
| Min. sheet size | 450X465(mm) |
| Max. die cutting size | 1300X940(mm) |
| Max.cutting speed | 6000s/h |
| Sheet Thickness | ≤10mm |
| Max.pressure | 380T |
| Total power | 25kw |
| Net weight | 20T |
| Overall dimension | 6750X4600X2260mm |
| Air requirements | 0.8Mpa,>0.36m³/min |
Detailed Images
1. Lead Edge bottom feeder Paper Feeding Unit
* The high precision lead edge feeder, can adopt to different requirement of the different paper. Frequency conversion control wind volume adjustment. Wind suction area can adjust according to the paper size with high-power fan.
* The forward, backward, light and low positions can be adjusted according to the stock for smooth feeding of thinner paper, large gram cardboard and corrugated paper etc.
2.Die cutting section
* Accurate positioning of diecutting chase controlled by precision photocell sensors with automatic check lock device.
* Pneumatic lock-up system on diecutting chase to increase efficiency.
* With air floating device ensures easy slide in and out of diecutting plate
3.Main transimission
* Bearing connection makes running more stable
* Main transmission adopts worm gears and the special design of the crankshaft connecting rod mechanism, the bearing connection, reducing motion space, avoid worm impact, stable operation, die-cutting pressure
4.Electronicl contrl system
* The electrical control system is Japan Omron PLC computer automatic control for fully detecting and controlling, and the Japan frequency converter with Taiwan main motor provides high power for paper feeding, paper conveying, die-cutting, and paper collecting.
* The human-machine interface can display various working conditions, indicate fault positions and give solutions.
Application
This automatic die-cutting machine can be equipped with a waste removal function, which is suitable for Cigarette Boxes,Jigsaw Puzzle,Wine Boxes,Plastic Boxes,Hangtags,Paper Boxes,Corrugated Boxes,Adhensive Stickers,etc.
Payment & Delivery
Our company has become an internationally famous enterprises with products sold well all over the country and exported to over 20 countries, including the United States, South Korea, Russia, India,Thailand, Brazil, Egypt, Greece, Poland, Italy, UK and so on.
FAQ
1. Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to all the friends.
2. Q: What is your delivery time ?
A: Normal delivery time is 30-55working days beside less stock model after received your deposit .
3. Q: Can you help us to buy other goods?
A: Sure of that, it is our honor to work for you, and control the goods quality.
4. Q: How was your machine warranty ?
A: Our all machines has one and half year (18mouthes) guarantee. Beside guarantee we will supply
cost spare parts and free maintenance knowledge .
5. Q: How can you do after sales service ?
A: Beside the quality guarantee, our company also regards the after sales service, using a full
arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24
hours on phone / on site technical support / on site service / preventive maintenance also training
again.
6. Q: What’s your payment terms ?
A: 30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also
accepted for us .
