Cigarette Boxes Die Cutting Stripping Machine 5000s/H Corrugated Carton 1500mm Sheet

Cigarette Boxes Die Cutting Stripping Machine 5000s/H Corrugated Carton 1500mm Sheet
Cigarette Boxes Die Cutting Stripping Machine 5000s/H Corrugated Carton 1500mm Sheet Cigarette Boxes Die Cutting Stripping Machine 5000s/H Corrugated Carton 1500mm Sheet Cigarette Boxes Die Cutting Stripping Machine 5000s/H Corrugated Carton 1500mm Sheet Cigarette Boxes Die Cutting Stripping Machine 5000s/H Corrugated Carton 1500mm Sheet

Large Image :  Cigarette Boxes Die Cutting Stripping Machine 5000s/H Corrugated Carton 1500mm Sheet

Product Details:
Place of Origin: CHINA
Brand Name: JIGUO
Certification: CE
Model Number: MYP-1500E
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $50,000 to $200,000/1 Set
Packaging Details: Box or as your request
Delivery Time: 45days
Supply Ability: 1~50SET

Cigarette Boxes Die Cutting Stripping Machine 5000s/H Corrugated Carton 1500mm Sheet

Description
Weight: 23T Warranty: 1 Year
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support Type: Die-cutting Machine
Computerized: Yes Application: Cigarette Boxes,Jigsaw Puzzle,Wine Boxes,Plastic Boxes,Hangtags,Paper Boxes,Corrugated Boxes,Adhensive Stickers
Power: 20KW Overall Dimension: 9400X5100X2260mm
Name: JIGUO Machine Type: Flat Die Cutting
Place Of Origin: Hebei,China
High Light:

Cigarette Boxes Die Cutting Stripping Machine

,

1500mm Die Cutting Stripping Machine

,

5000s/h corrugated carton die cutting machine

MYP-1500E The Good And Cheapest Automatic Die Cutting And Stripping Machine



Main features:

JIGUO MYP-1500E Autuomatic die cutting and stripping machine is a special equipment applying to die-cutting of advanced colorful boxes and cartons. The machine combines several advantages over many other die-cutters both at home and abroad. Gripper bars with high intensity are applicable to all kinds of cardboard, paperboard and corrugated paper. Frontal ,back and side registration mechanism ensures great precision of die-cutting. Other parts are adopted such as intermittent mechanism with high precision at clutch, pneumatic locking mechanism. Adopt programmable controller and man-machine interface, automatic showing working speed , amount of paper processed, total running time, etc. It's easy to eliminate troubles according to the display of trouble shooting. Adopt transducer to control main motor.

The machine has lots of sensors and safety-ensuring devices to guarantee the safety if operator and the environment. Frontal and back pressure can be adjusted separately. It is convenient to stop the machine by handy. It can also realize die-cutting without clipper margin .



Main Drive:

Adopt high quality steel alloy specially processed to ensure high precision, long working life and low abrasion.



Pneumatic Clutch:

Adopt imported pneumatic clutch , long endurance and low noise, braking stable and clutching fast with strong driving force, conformed to the standard of the European export standard.



Paper Delivery Part:

Can achieve delivery paper automatic and in order. On-line pneumatic sampling system, can checking the paper's precision, can automatic early warning and speed droop.



Die-cutting Part:

The safety design of die-cutting floor and knife template and the design of easily move and slewing devices make the installation and adjustment of plate more efficient and convenient. The bottom of cutting plate adopt 3mm thick stainless steel, the active base plate adopt 2mm thick aluminium plate, that can save human resources, efficient and convenient.



Gripper Bars:

The gripper bars are made of hard aluminium alloy with its surface treated by anode oxidation. It is with high intensity, little weight and inertia. Sheets' transferring can be finished with high precision in high speed.



Cigarette Boxes Die Cutting Stripping Machine 5000s/H Corrugated Carton 1500mm Sheet 0



Products Description​

PARAMETER
Model MYP-1500E
Max. sheet size 1500X1105(mm)
Min. sheet size 500X420(mm)
Max. die cutting size 1480X1090(mm)
Max.cutting speed 5000s/h
Die cutting precision ±0.18mm
Sheet thickness

250-2500g/㎡(Card paper)

<8mm(corrugated paper)

Max.pressure 400T
Total power 20kw
Net weight 23T
Overall dimension

9400X5100X2260mm

Air requirements 0.8Mpa,>0.36m³/min

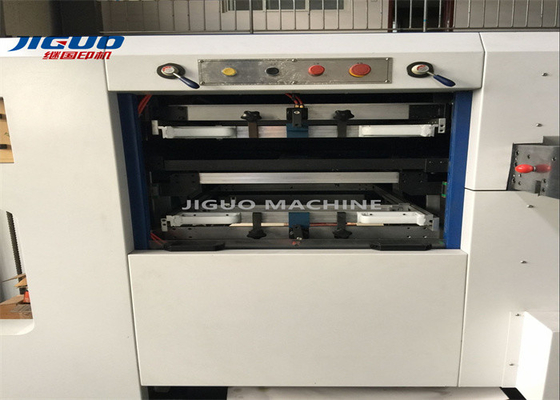

Local Details

Cigarette Boxes Die Cutting Stripping Machine 5000s/H Corrugated Carton 1500mm Sheet 1

Cigarette Boxes Die Cutting Stripping Machine 5000s/H Corrugated Carton 1500mm Sheet 2



Cigarette Boxes Die Cutting Stripping Machine 5000s/H Corrugated Carton 1500mm Sheet 3



Cigarette Boxes Die Cutting Stripping Machine 5000s/H Corrugated Carton 1500mm Sheet 4

FAQ

1. Q: Are you trading company or manufacturer?

A: We are manufacturer, and also provide the business solution to all the friends.

2. Q: What is your delivery time ?

A: Normal delivery time is 30-55working days beside less stock model after received your deposit .

3. Q: Can you help us to buy other goods?

A: Sure of that, it is our honor to work for you, and control the goods quality.

4. Q: How was your machine warranty ?

A: Our all machines has one and half year (18mouthes) guarantee. Beside guarantee we will supply

cost spare parts and free maintenance knowledge .

5. Q: How can you do after sales service ?

A: Beside the quality guarantee, our company also regards the after sales service, using a full

arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24
hours on phone / on site technical support / on site service / preventive maintenance also training
again.

6. Q: What’s your payment terms ?

A: 30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also

accepted for us .
