Product Details:
|
| Weight: | 20T | Warranty: | 1 Year |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation | Dimension(l*w*h): | 7990*5100*2260mm |
| Type: | Die-cutting Machine,Paper Cutting Machine | Computerized: | Yes |
| Power(w): | 20KW | Name: | Die Cutting Machine |
| Max.Paper Size: | 1500×1105mm | Min. Paper Size: | 500×420mm |
| Max. Cutting Size: | 1480×1090mm | Max. Pressure: | 400T |
| High Light: | Automatic Die Cutting Machine,paper Automatic Die Cutting Machine,Feeder flatbed die punching machine |
||
Product Description
* The pressed part is high-strength ductile iron QT500-7, cast by special process
* High strength, never deformed
* The crankshaft is made of high-grade alloy steel imported from Japan, which has been treated by a special process
* German SEW manufactures super wear-resistant worms and worm gears.
* Precise pressure adjustment system, easy to adjust when the machine is running.
* Automatic output device to ensure neat output.
* Equipped with electric automatic feeding, safe and convenient feeding without stopping.
Features
* Main chain protector.
* Anti-back device.
* Unique lateral positioning design makes each row of clamps on one positioning line.
* Gripper positioning compensation device to ensure the stability of die-cutting accuracy.
* Front and rear adjustable positioning system, accurate positioning and easy adjustment.
* Moving plate scissor cut to make the pressure even and high.
* Torque limit protector imported from Germany to avoid damage to the machine due to emergencies and ensure machine safety and personnel safety.
Advantage
* Convenient knife template turning device.
* Power lubrication system, main chain microcomputer control automatic intermittent lubrication.
* Five rows made of high-precision 240° intermittent mechanism in Colombo, Italy
* Of grippers to run smoothly, accurate precision and low noise.
* Italy OMPI imported pneumatic clutch device.
* Japan SMC High speed rotary connector
Products Description
| PARAMETER | |

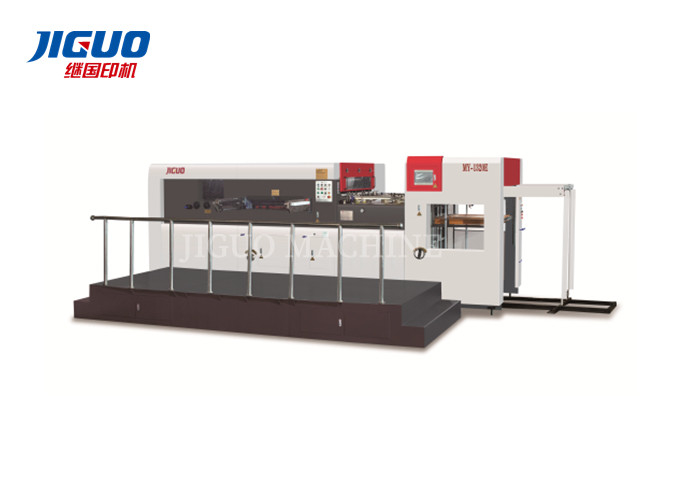

| Model | MY-1500E |
| Max. sheet size | 1500X1105(mm) |
| Min. sheet size | 500X420(mm) |
| Max. die cutting size | 1480X1090(mm) |
| Max.cutting speed | 5000s/h |
| Die cutting precision | ±0.18mm |
| Sheet thickness |
250-2500g/㎡(Cardboard) ≤8mm(corrugated board) |
| Max.pressure | 400T |
| Total power | 20kw |
| Net weight | 20T |
| Overall dimension | 7990X5100X2260mm |
| Air requirements | 0.8Mpa,>0.36m³/min |
Local Details
Application
This automatic die-cutting machine can be equipped with a waste removal function, which
is suitable for Cigarette Boxes,Jigsaw Puzzle,Wine Boxes,Plastic Boxes,Hangtags,Paper
Boxes,Corrugated Boxes,Adhensive Stickers,etc.
Payment & Delivery
Our company has become an internationally famous enterprises with products sold well all
over the country and exported to over 20 countries, including the United States, South
Korea, Russia, India,Thailand, Brazil, Egypt, Greece, Poland, Italy, UK and so on.
FAQ
1. Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to all the friends.
2. Q: What is your delivery time ?
A: Normal delivery time is 30-55working days beside less stock model after received your deposit .
3. Q: Can you help us to buy other goods?
A: Sure of that, it is our honor to work for you, and control the goods quality.
4. Q: How was your machine warranty ?
A: Our all machines has one and half year (18mouthes) guarantee. Beside guarantee we will supply
cost spare parts and free maintenance knowledge .
5. Q: How can you do after sales service ?
A: Beside the quality guarantee, our company also regards the after sales service, using a full
arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24
hours on phone / on site technical support / on site service / preventive maintenance also training
again.
6. Q: What’s your payment terms ?
A: 30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also
accepted for us .
