Feeding Automatic Die Cutting Machine Creasing Centreline System 1320X960mm Paper

Certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
I'm Online Chat Now

Feeding Automatic Die Cutting Machine Creasing Centreline System 1320X960mm Paper

Feeding Automatic Die Cutting Machine Creasing Centreline System 1320X960mm Paper
Feeding Automatic Die Cutting Machine Creasing Centreline System 1320X960mm Paper
Feeding Automatic Die Cutting Machine Creasing Centreline System 1320X960mm Paper Feeding Automatic Die Cutting Machine Creasing Centreline System 1320X960mm Paper Feeding Automatic Die Cutting Machine Creasing Centreline System 1320X960mm Paper Feeding Automatic Die Cutting Machine Creasing Centreline System 1320X960mm Paper Feeding Automatic Die Cutting Machine Creasing Centreline System 1320X960mm Paper

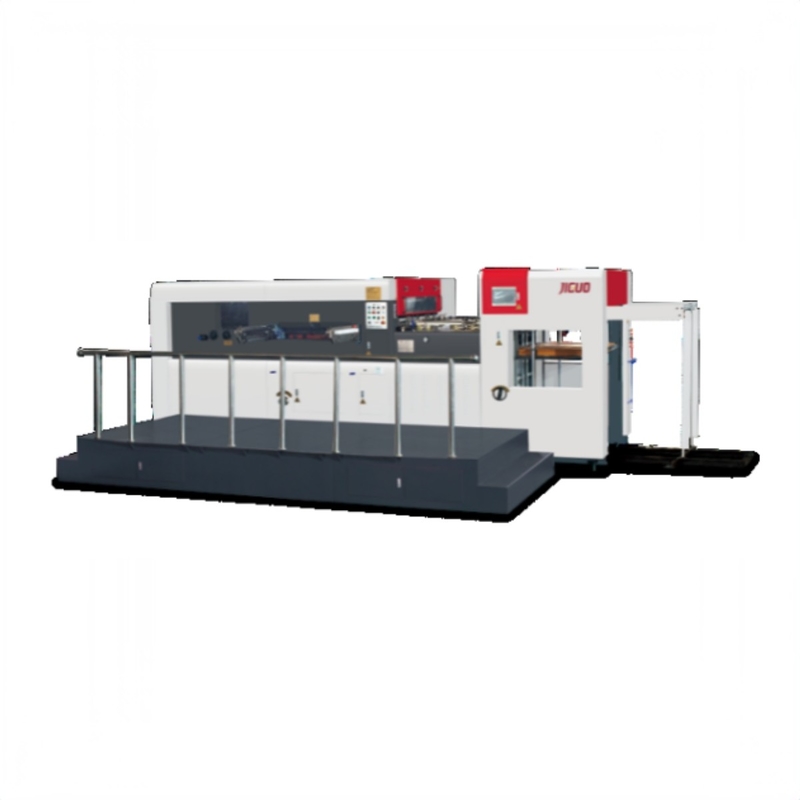

Large Image :  Feeding Automatic Die Cutting Machine Creasing Centreline System 1320X960mm Paper

Product Details:
Place of Origin: CHINA
Brand Name: JIGUO
Certification: CE
Model Number: MY-1320E
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $50,000 to $100,000/1 Set
Packaging Details: Wrap film or box
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 50 set

Feeding Automatic Die Cutting Machine Creasing Centreline System 1320X960mm Paper

Description
Weight: 18T Name: Die Cutting Machine
Warranty: 1 Year After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation
Dimension(l*w*h): 7500*4600*2260mm Type: Die-cutting Machine,Paper Cutting Machine
Computerized: Yes Power(w): 20KW
Highlight:

Automatic Die Cutting Machine

,

Feeding Automatic Die Cutting Machine

,

automatic creasing machine

MY-1320E Feeder Feeding Automatic Die Cutting & Creasing Machine The Good And Cheapest Die Cutting Machine



Advantage

1. Which adopts high technology with gear main drive can run max speed 6000s/h, shorter

preparation process and perfect quality, which professional applies to all kinds of corrugated

board.



2. Paper hold down pressing plate is adjustable to adapt warped board, no double sheets

to ensure continuous and smooth feeding.


3. Front gauge non-stop back and forth adjustable to accommodate variation in gripper

margin.


4. Main drive adopts high quality precision worm gear and toggle system.


5. Centreline system for quick stripping tool set up and change over, compatiable with

centreline Il.


6. Front edge waste removal system removes and transfers waste edge outside the

machine visa conveyor belt.


7. Counter can set based on your products stack request, which will be improve working

efficiency.


8. Motorized upper frame suspending hoister.







Products Description​

PARAMETER
Model MY-1320E
Max. sheet size 1320X960(mm)
Min. sheet size 450X400(mm)
Max. die cutting size 1300X940(mm)
Max.cutting speed 6000s/h
Die cutting precision ±0.15mm
Sheet thickness

250-2500g/㎡(Cardboard)

≤8mm(corrugated board)

Max.pressure 380T
Total power 20kw
Net weight 18T
Overall dimension 7500X4600X2260mm
Air requirements 0.8Mpa,>0.36m³/min



Feeding Automatic Die Cutting Machine Creasing Centreline System 1320X960mm Paper 0



Local Details

Feeding Automatic Die Cutting Machine Creasing Centreline System 1320X960mm Paper 1



Feeding Automatic Die Cutting Machine Creasing Centreline System 1320X960mm Paper 2



Feeding Automatic Die Cutting Machine Creasing Centreline System 1320X960mm Paper 3



Feeding Automatic Die Cutting Machine Creasing Centreline System 1320X960mm Paper 4



Feeding Automatic Die Cutting Machine Creasing Centreline System 1320X960mm Paper 5



Feeding Automatic Die Cutting Machine Creasing Centreline System 1320X960mm Paper 6





Feeding Automatic Die Cutting Machine Creasing Centreline System 1320X960mm Paper 7



  Feeding Automatic Die Cutting Machine Creasing Centreline System 1320X960mm Paper 8

FAQ

1. Q: Are you trading company or manufacturer?

A: We are manufacturer, and also provide the business solution to all the friends.

2. Q: What is your delivery time ?

A: Normal delivery time is 30-55working days beside less stock model after received your deposit .

3. Q: Can you help us to buy other goods?

A: Sure of that, it is our honor to work for you, and control the goods quality.

4. Q: How was your machine warranty ?

A: Our all machines has one and half year (18monthes) guarantee. Beside guarantee we will supply

cost spare parts and free maintenance knowledge .

5. Q: How can you do after sales service ?

A: Beside the quality guarantee, our company also regards the after sales service, using a full

arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24
hours on phone / on site technical support / on site service / preventive maintenance also training
again.

6. Q: What’s your payment terms ?

A: 30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also

accepted for us .
