Platen Paper Packaging Corrugated Carton Automatic Die Cutting And Creasing Machine

Platen Paper Packaging Corrugated Carton Automatic Die Cutting And Creasing Machine
Platen Paper Packaging Corrugated Carton Automatic Die Cutting And Creasing Machine Platen Paper Packaging Corrugated Carton Automatic Die Cutting And Creasing Machine Platen Paper Packaging Corrugated Carton Automatic Die Cutting And Creasing Machine Platen Paper Packaging Corrugated Carton Automatic Die Cutting And Creasing Machine Platen Paper Packaging Corrugated Carton Automatic Die Cutting And Creasing Machine

Large Image :  Platen Paper Packaging Corrugated Carton Automatic Die Cutting And Creasing Machine

Product Details:
Place of Origin: CHINA
Brand Name: JIGUO
Certification: CE
Model Number: MY-1200E
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $50,000 to $100,000/1 Set
Packaging Details: Wrap film or box
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 50 set

Platen Paper Packaging Corrugated Carton Automatic Die Cutting And Creasing Machine

Description
Max. Paper Size: 1200×780mm Min. Paper Size: 400×370mm
Weight: 16.8T Power(w): 18KW
Warranty: 1 Year After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation
Dimension(l*w*h): 6400*4080*2160mm Type: Die-cutting Machine,Paper Cutting Machine
Computerized: Yes Name: Die Cutting Machine
High Light:

Platen corrugated box making machine

,

corrugated box making machine

,

paper die cutting machine

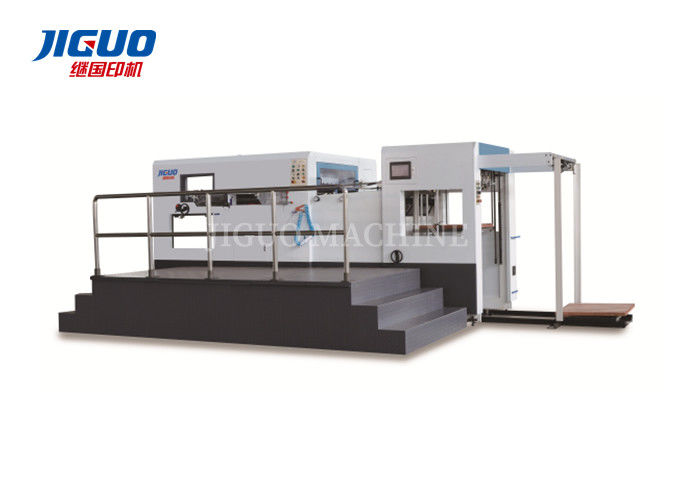

MY-1200E Platen Cardboard Paper Packaging Corrugated Carton Automatic Die Cutting And Creasing Machine​



Product Description


Application


Our die-cutting machine is an indispensable equipment after printing, which is widely used in die-cutting and creasing of stickers, handbags, book covers, packaging boxes, greeting cards, desk calendars, corrugated boxes, etc. Form the desired material into large quantities of the same shape.



Feature


1. Our die-cutting machines are made of high-quality materials with high strength


2. It adopts three-stage helical gear mechanism, which has stable operation, large cutting force and low noise.


3. Single-disc electromagnetic clutch, flexible and reliable operation


4. Reasonably designed working height and large opening angle of mobile bed


5. The electrical system is designed in accordance with IEC standards.


6. Single-sheet die-cutting, continuous die-cutting operation, adjustable delay range


7. Reliable safety system to ensure the safety of operators.



Advantage


1. Our die-cutting machine adopts centralized lubrication pump system


2. Adopt world famous brand electrical components


3. Strengthen construction, stable operation and long service life.


4. The active plate frame is adopted, which is convenient for installing the die-cutting ruler and adjusting the pressure, and the effect is clear and beautiful.

Platen Paper Packaging Corrugated Carton Automatic Die Cutting And Creasing Machine 0



Products Description​

PARAMETER
Model MY-1200E
Max. sheet size 1200X780(mm)
Min. sheet size 400X370(mm)
Max. die cutting size 1150X750(mm)
Max.cutting speed 7500s/h
Die cutting precision ±0.12mm
Sheet thickness

0.1~4mm

Max.pressure 320T
Total power 18kw
Net weight 16.8T
Overall dimension 6400X4080X2160mm
Air requirements 0.8Mpa,>0.36m³/min



Local Details

Platen Paper Packaging Corrugated Carton Automatic Die Cutting And Creasing Machine 1



Application

This automatic die-cutting machine can be equipped with a waste removal function, which

is suitable for Cigarette Boxes,Jigsaw Puzzle,Wine Boxes,Plastic Boxes,Hangtags,Paper

Boxes,Corrugated Boxes,Adhensive Stickers,etc.

Platen Paper Packaging Corrugated Carton Automatic Die Cutting And Creasing Machine 2





Platen Paper Packaging Corrugated Carton Automatic Die Cutting And Creasing Machine 3



Platen Paper Packaging Corrugated Carton Automatic Die Cutting And Creasing Machine 4

FAQ

1. Q: Are you trading company or manufacturer?

A: We are manufacturer, and also provide the business solution to all the friends.

2. Q: What is your delivery time ?

A: Normal delivery time is 30-55working days beside less stock model after received your deposit .

3. Q: Can you help us to buy other goods?

A: Sure of that, it is our honor to work for you, and control the goods quality.

4. Q: How was your machine warranty ?

A: our all machines has one and half year (18mouthes) guarantee. Beside guarantee we will supply

cost spare parts and free maintenance knowledge .

5. Q: How can you do after sales service ?

A: beside the quality guarantee, our company also regards the after sales service, using a full

arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24
hours on phone / on site technical support / on site service / preventive maintenance also training
again.

6. Q: What’s your payment terms ?

A: 30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also

accepted for us .
