Product Details:
|
| Max. Paper Size: | 1060×760mm/1080×780mm | Weight: | 16T |
|---|---|---|---|
| Min. Paper Size: | 400×370mm | Max. Cutting Size: | 1030×750mm |
| Max. Cutting Speed: | 7500s/h | Die-Cutting Precision: | ±0.1mm |
| Max. Pressure: | 320T | Warranty: | 1 Year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation | Dimension(l*w*h): | 6400*3950*2360mm |
| Type: | Die-cutting Machine,Paper Cutting Machine | Computerized: | Yes |
| Power(w): | 18KW | Name: | Die Cutting Machine |
| High Light: | paper die cutting creasing machine,Carton Box die cutting creasing machine,Cardboard auto die cutting and creasing machine |
||

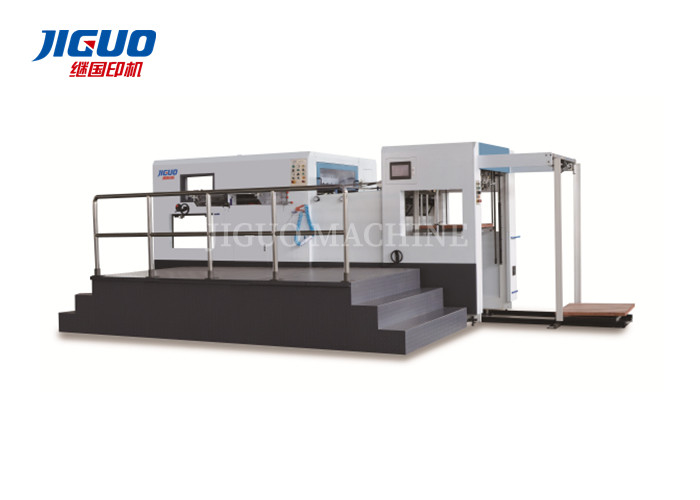

Product Description
* The pressed part is high-strength ductile iron QT500-7, cast by special process
* High strength, never deformed
* The crankshaft is made of high-grade alloy steel imported from Japan, which has been treated by a special process
* German SEW manufactures super wear-resistant worms and worm gears.
* Precise pressure adjustment system, easy to adjust when the machine is running.
* Automatic output device to ensure neat output.
* Equipped with electric automatic feeding, safe and convenient feeding without stopping.
*Main chain protector.
* Anti-back device.
* Unique lateral positioning design makes each row of clamps on one positioning line.
* Gripper positioning compensation device, ensure the stability of the die cutting precision.
* Adjustable front and back positioning system, accurate positioning and easy adjustment.
* Moving plate scissor cutting, make the pressure is uniform and high.
* German imported torsion limits protector, avoid any damage to the machine caused by an emergency, and ensure machine safety and personnel safety.
* Convenient knife template turn-over device.
* Power supply lubrication system, main chain microcomputer control automatic intermittent lubrication.
Products Description
| PARAMETER | |
| Model | MY-1060E |
| Max. sheet size | 1060X760(mm) |
| Min. sheet size | 400X370(mm) |
| Max. die cutting size | 1030X750(mm) |
| Max.cutting speed | 7500s/h |
| Die cutting precision | ±0.1mm |
| Sheet thickness |
Cardboard:0.1-3mm |
| Max.pressure | 320T |
| Total power | 18kw |
| Net weight | 16T |
| Overall dimension | 6400X3950X2360mm |
| Air requirements | 0.8Mpa,>0.36m³/min |
Local Details
Application
This automatic die-cutting machine can be equipped with a waste removal function, which
is suitable for Cigarette Boxes,Jigsaw Puzzle,Wine Boxes,Plastic Boxes,Hangtags,Paper
Boxes,Corrugated Boxes,Adhensive Stickers,etc.
FAQ
1. Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to all the friends.
2. Q: What is your delivery time ?
A: Normal delivery time is 30-55working days beside less stock model after received your deposit .
3. Q: Can you help us to buy other goods?
A: Sure of that, it is our honor to work for you, and control the goods quality.
4. Q: How was your machine warranty ?
A: Our all machines has one and half year (18mouthes) guarantee. Beside guarantee we will supply
cost spare parts and free maintenance knowledge .
5. Q: How can you do after sales service ?
A: Beside the quality guarantee, our company also regards the after sales service, using a full
arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24
hours on phone / on site technical support / on site service / preventive maintenance also training
again.
6. Q: What’s your payment terms ?
A: 30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also
accepted for us .
