Product Details:
|
| Max. Paper Size: | 1070×770mm | Min. Paper Size: | 400×360mm |
|---|---|---|---|
| Max. Diecutting Speed: | 7000s/h | Weight: | 40T |
| Warranty: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation |
| Dimension(l*w*h): | 10050*4300*2600mm | Type: | Die-cutting Machine,Paper Cutting Machine,Hot Embossing,Foil Stamping |
| Computerized: | Yes | Power(w): | 105KW |
| High Light: | 7000s/h Automatic Hot Foil Stamping Machine,1070×770mm Automatic Hot Foil Stamping Machine,1070×770mm die cutting stripping machine |
||

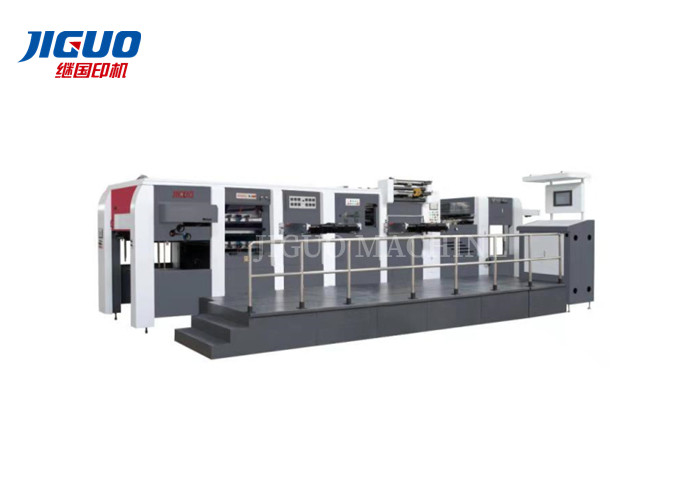

Foil stamping machine is used in the print finishing of folded boxes, for example in the Food area (chocolate, confectionery) or the Non-food area (cosmetics, tobacco), as well as in the print finishing of printed matter (greeting cards, labels or magazines). The foil stampingmachine is also the machine of choice for many companies in the Security industry.
Main Features
1) High configuration of machine parts are used. Precision of die cutting and foil stamping ensured.
2) Full machine frame are made of ductile cast iron 600# material is used to prevent the two side of the machine getting distorted.
3) World fist Full plate foil stamping at a high speed of 7000 sheet / hour
4) The foil stamping machine is designed and assembled according to precisionconcept
5) The quick plate change system is installed as a standard accessories for free.
6) The horizontal foil feeding system is install as a standard accessories for free.
| PARAMETER | |
| Model | T-MYRP-1060High |
| Max. sheet size | 1070X770(mm) |
| Min. sheet size | 400X360(mm) |
| Max. die cutting size | 1040X750(mm) |
| Max.stamping range | 1030X740(mm) |
| Max.die cutting speed | 7000s/h |
| Sheet thickness |
0.1-3mm(Card paper) ≤4mm(corrugated paper) |
| Die cutting precision | ±0.1mm |
| Stamping tempreture | 0~200℃ |
| Heating plate zone number | 24 |
| NO.of foil rollers | 3 longitudinal / 2 transversal |
| Max.feeding pile height | 1600mm |
| Max.delivery pile height | 1400mm |
| Max.pressure | 600T |
| Total power | 105kw |
| Total weight | 40T |
| Overall dimension | 10050X4300X2600mm |
| Air requirements | 0.8Mpa,>0.72m³/min |
Detailed Images
Cutting Chase Turn Over Device
1) Easy for operator to change the plate, save time and increase efficiency.
2) The chase turn over device is more professional by helping the operator during plate changing.
Foil Collection Box
1) World first full plate foil stamping devices at a high speed of 7000 sheet/min.
2) The collection box is help the increasing the stamping speed and have buffering system that reduce machine noise
3) Easy waste foil collection
Foil Stamping Rewinder shafts
1) The winder can be pulled out for quick change of foil rewind shafts, saving time and inhancing productivity.
2) The operate no longer need to get in the machine to fix or change the shafts, easy maintenance.
Driving System
1) Use high configuration of driving system enusre the precision of die cutting and foil stamping
Indexing - TAN TSU - Taiwan
Chain - RENOLD - Germany
Gripper Bar - JASU - Taiwan
2) A high configuration of driving system is very important for precise foil stamping, even one small error of the driving system can cause a big trouble to the foil stamping effect.
Payment & Delivery
Our company has become an internationally famous enterprises with products sold well all
over the country and exported to over 20 countries, including the United States, South
Korea, Russia, India,Thailand, Brazil, Egypt, Greece, Poland, Italy, UK and so on.
FAQ
1. Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to all the friends.
2. Q: What is your delivery time ?
A: Normal delivery time is 30-55working days beside less stock model after received your deposit .
3. Q: Can you help us to buy other goods?
A: Sure of that, it is our honor to work for you, and control the goods quality.
4. Q: How was your machine warranty ?
A: our all machines has one and half year (18mouthes) guarantee. Beside guarantee we will supply
cost spare parts and free maintenance knowledge .
5. Q: How can you do after sales service ?
A: beside the quality guarantee, our company also regards the after sales service, using a full
arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24
hours on phone / on site technical support / on site service / preventive maintenance also training
again.
6. Q: What’s your payment terms ?
A: 30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also
accepted for us .
