Product Details:
|
| Max. Paper Size: | 1070×770mm | Min. Paper Size: | 400×360mm |
|---|---|---|---|
| Max. Diecutting Size: | 1040×750mm | Max. Stamping Range: | 1030×740mm |
| Power(w): | 70KW | Weight: | 22T |
| Warranty: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation |
| Dimension(l*w*h): | 7700*4300*2500mm | Type: | Die-cutting Machine,Paper Cutting Machine,Hot Embossing,Foil Stamping |
| High Light: | Box Cutter gold foil embossing machine,Carton Cutter gold foil embossing machine,Cardboard hot foil stamping machine automatic |
||
Detailed Product Description
1. High-end and high-efficiency

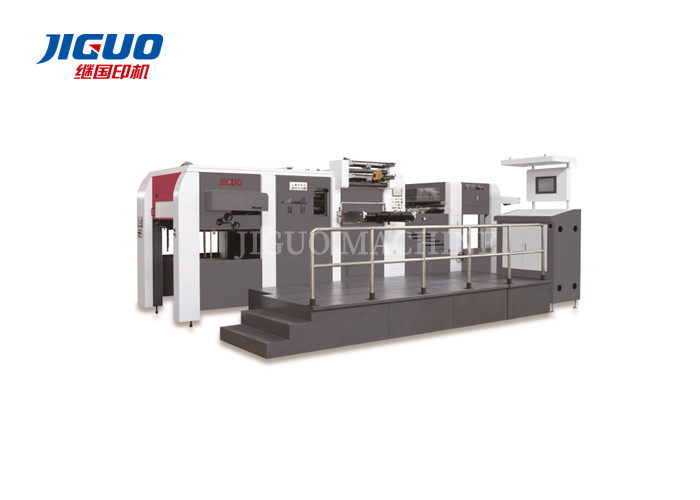

Fully automatic dual-unit holographic positioning hot stamping die-cutting and peeling machine is specially designed for large orders. Double units, complete bronzing, die-cutting and demoulding at one time, saving time and labor costs.
2. Function optional
Options: Hot Stamping, Die Cutting, Peeling, Holographic Positioning, Embossing
Except for die cutting, all other features are optional. Very flexible and customized to your needs
3. Intelligent system
3.1 Non-stop paper feeding system: continuous paper feeding
3.2 Automatic lubrication system: fully automatic cooling and oil filtering
3.3 Foil Stamping/Peeling Transition System: Switch from hot stamping to stripping, and vice versa when doing die cutting work.
5. Powerful control system
The electrical part is provided by the main motor, and 15 servo motors (optional) ensure the accurate and high-speed stability of the bronzing position. 12 independent heating zones provide a temperature of 0-199°, completing pattern versatility and fastness. The patterns are all high quality, no bubbles, no coking, no drape.
| PARAMETER | |
| Model | TMY-1060High |
| Max. sheet size | 1070X770(mm) |
| Min. sheet size | 400X360(mm) |
| Max. die cutting size | 1040X750(mm) |
| Max.stamping range | 1030X740(mm) |
| Max.die cutting speed | 7000s/h |
| Sheet thickness |
0.1-3mm(Card paper) ≤4mm(corrugated paper) |
| Die cutting precision | ±0.1mm |
| Stamping tempreture | 0~200℃ |
| Heating plate zone number | 12 |
| NO.of foil rollers | 3 longitudinal / 2 transversal |
| Max.feeding pile height | 1600mm |
| Max.delivery pile height | 1400mm |
| Max.pressure | 600T |
| Total power | 70kw |
| Total weight | 22T |
| Overall dimension | 7700X4300X2500mm |
| Air requirements | 0.8Mpa,>0.36m³/min |
Application
This foil stamping & die-cutting machine is suitable for Cigarette Boxes,Wine Boxes,Plastic
Boxes,Hangtags,Paper Boxes,Corrugated Boxes,etc.
Exhibition & Clients
FAQ
1. Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to all the friends.
2. Q: What is your delivery time ?
A: Normal delivery time is 30-55working days beside less stock model after received your deposit .
3. Q: Can you help us to buy other goods?
A: Sure of that, it is our honor to work for you, and control the goods quality.
4. Q: How was your machine warranty ?
A: our all machines has one and half year (18mouthes) guarantee. Beside guarantee we will supply
cost spare parts and free maintenance knowledge .
5. Q: How can you do after sales service ?
A: beside the quality guarantee, our company also regards the after sales service, using a full
arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24
hours on phone / on site technical support / on site service / preventive maintenance also training
again.
6. Q: What’s your payment terms ?
A: 30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also
accepted for us .
