Product Details:
|
| Max. Paper Size: | 1070×770mm | Min. Paper Size: | 400×360mm |
|---|---|---|---|
| Stamping Tempreture: | 0~199℃ | Heating Plate Zone Number: | 12 |
| Weight: | 20T | Warranty: | 1 Year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation | Dimension(l*w*h): | 7000*4100*2420mm |
| Type: | Die-cutting Machine,Paper Cutting Machine | Computerized: | Yes |
| Power(w): | 62KW | Name: | Automatic Hot Embossing Die Cutting Machine |
| High Light: | Hot embossing and die cutting machine,embossing and die cutting machine,Cardboard die cutting creasing machine |
||
Detail Product Description

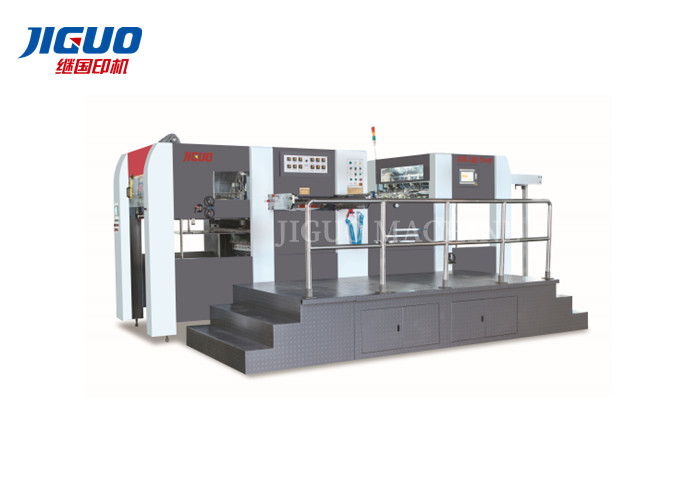

1.Automatic Deep Embossing Die Cutting Machine is designed for die cutting,embossing and creasing.It suits for 60-2000 g/m2cardboard, and thickness below 4mm corrugated paper , pasting paper, laminating paper and so on.
2.The machine includes 4 parts:feeder,paper feed section,main motor and delivery section. And it finishs feeding,die cutting,embossing and collecting work cycle automatically.
3.The thicken wall has1000Ton stress-tolerant ,makes embossing work more clear,and effect more better.12 independent heated zones provide 0-199°C temperature,make embossing pattern more variable and higher quality. 900Ton cutting pressure makes the pattern more stereoscopic.
4.The machine is equipped with automatic lubrication system.And the swing rod and copper tile are all reworked by hand .we scrap the surface and make it full of criss-cross scrath. the groove hold more oil so that machine runs more smoothly , and maintain a higher and longer precision working.
| PARAMETER | |
| Model | MYR-1060Deep |
| Max. sheet size | 1070X770(mm) |
| Min. sheet size | 400X360(mm) |
| Max. die cutting size | 1040X750(mm) |
| Max.cutting speed | 6500s/h |
| Die cutting precision | ±0.1mm |
| Sheet thickness |
0.1~4mm |
| Die-cutting Pressure | 900T |
| Total power | 62kw |
| Total weight | 20T |
| Stamping Tempreture | 0~199℃ |
| Overall dimension | 7000X4100X2420mm |
| Air requirements | 0.8Mpa,>0.36m³/min |
Detail Display
|
1. Feed Section * Taiwan YONGCHUAN high quality feeder * 4 suchk 4 send * easily adjusted front back, left right, up down * adjustable blowing * electrostatic removal system |
|
2. Feeding postioning section * incline paper feeding table * pull and push dual purpose gauge * in-place reduction device * double sheet check device * waste alarm device * waste alarm device |
|
3. Embossing/die cutting section * 900 tons cutting pressure * ±0.1mm cutting precision * max 6500 sheets/ht machine speed |
|
4. Delivery Section * non-stop paper delivery system * paper blowing device * sectional adjustable brush * double pitch chain |
Payment & Delivery
Our company has become an internationally famous enterprises with products sold well all
over the country and exported to over 20 countries, including the United States, South
Korea, Russia, India,Thailand, Brazil, Egypt, Greece, Poland, Italy, UK and so on.
FAQ
1. Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to all the friends.
2. Q: What is your delivery time ?
A: Normal delivery time is 30-55working days beside less stock model after received your deposit .
3. Q: Can you help us to buy other goods?
A: Sure of that, it is our honor to work for you, and control the goods quality.
4. Q: How was your machine warranty ?
A: our all machines has one and half year (18mouthes) guarantee. Beside guarantee we will supply
cost spare parts and free maintenance knowledge .
5. Q: How can you do after sales service ?
A: beside the quality guarantee, our company also regards the after sales service, using a full
arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24
hours on phone / on site technical support / on site service / preventive maintenance also training
again.
6. Q: What’s your payment terms ?
A: 30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also
accepted for us .
