Automatic Die Cutting Machine
Created with Pixso. Servo Motors Automatic Die Cutting Machine Heavy Deep Embossing 400×360mm Paper

Servo Motors Automatic Die Cutting Machine Heavy Deep Embossing 400×360mm Paper

Brand Name: JIGUO
Model Number: MYR-1150High
MOQ: 1 set
Price: $100,000 to $200,000/1 Set
Delivery Time: 45 days
Payment Terms: L/C, T/T
Detail Information
Place of Origin:
CHINA
Certification:
CE
Weight:
20T
Warranty:
1 Year
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation
Dimension(l*w*h):
6700*4260*2350mm
Type:
Die-cutting Machine,Paper Cutting Machine
Computerized:
Yes
Power(w):
57KW
Name:
Automatic Hot Embossing Die Cutting Machine
Max. Paper Size:
1180×770mm
Min. Paper Size:
400×360mm
Packaging Details:
Wrap film or box
Supply Ability:
50 set
Highlight:

servo motors Automatic Die Cutting Machine

,

Automatic Die Cutting Machine

,

heavy duty die cutting machine

Product Description

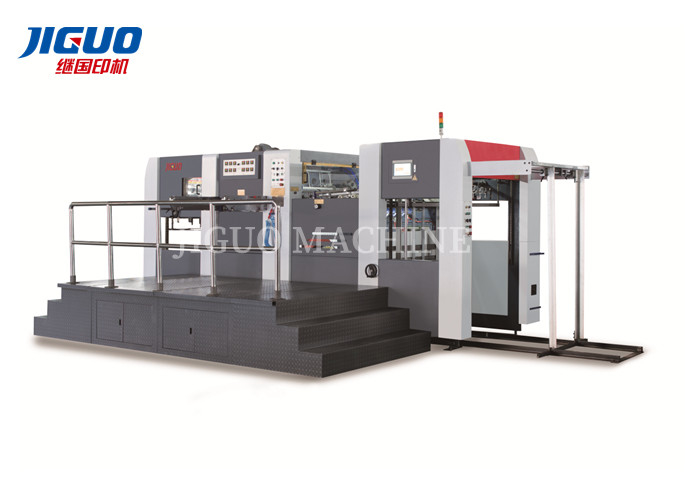

MYR-1150High Automatic Hot Embossing & Die Cutting Machine (Heavy)





Product Description


1.Automatic Deep Embossing And Foil Stamping Die Cutting Machine is designed for die cutting,foil stamping and embossing.It suits for more than 80g/m2 paper, cardboard, corrugated paper below 4mm, pasting paper, laminating paper and so on.



2.The machine includes 4 parts:feeder,paper feed section,main motor and delivery section.And it can finish feeding,hot foil stamping,die cutting ,embossing and collecting work cycle automatically.



3.The electrical part is provided by main motor,and the 7 servo motors ensure foil stamping position accurately ,and speed stably.12 independent heat zones provide 0-199°temperature and ensure the variety and the fastness of the pattern.meanwhile, can make the stamping size larger and jump more smoothly. The pattern's fastness is also high-quality, no bubble, no coking, no drape.



4. Thicken wall could stress-tolerant 1000Ton,12 independent heated temperature zone makes the embossing more clear,make the embossing pattern more variable and higher quality.600Ton cutting pressure makes the pattern effect more stereoscopic.



5.The machine is equipped with automatic lubrication system.And the swing rod and copper tile are all reworked by hand .we scrap the surface and make it full of criss-cross scratch. the groove hold more oil that can ensure smooth going of the operation, and the precision of the pattern.



Servo Motors Automatic Die Cutting Machine Heavy Deep Embossing 400×360mm Paper 0

Products Description​

PARAMETER
Model MYR-1150High
Max. sheet size 1180X770(mm)
Min. sheet size 400X360(mm)
Max. die cutting size 1130X750(mm)
Max.cutting speed 7000s/h
Die cutting precision ±0.1mm
Sheet thickness

0.1~4mm

Die-cutting Pressure 600T
Total power 57kw
Total weight 20T
Stamping Tempreture 0-199℃
Overall dimension 6700X4260X2350mm
Air requirements 0.8Mpa,>0.36m³/min



Application

This automatic die-cutting machine can be equipped with a waste removal function, which is suitable for Cigarette Boxes,Jigsaw Puzzle,Wine Boxes,Plastic Boxes,Hangtags,Paper Boxes,Corrugated Boxes,Adhensive Stickers,etc.

Servo Motors Automatic Die Cutting Machine Heavy Deep Embossing 400×360mm Paper 1



Payment & Delivery

Our company has become an internationally famous enterprises with products sold well all over the country and exported to over 20 countries, including the United States, South Korea, Russia, India,Thailand, Brazil, Egypt, Greece, Poland, Italy, UK and so on.

Servo Motors Automatic Die Cutting Machine Heavy Deep Embossing 400×360mm Paper 2



Servo Motors Automatic Die Cutting Machine Heavy Deep Embossing 400×360mm Paper 3

FAQ

1. Q: Are you trading company or manufacturer?

A: We are manufacturer, and also provide the business solution to all the friends.

2. Q: What is your delivery time ?

A: Normal delivery time is 30-55working days beside less stock model after received your deposit .

3. Q: Can you help us to buy other goods?

A: Sure of that, it is our honor to work for you, and control the goods quality.

4. Q: How was your machine warranty ?

A: our all machines has one and half year (18mouthes) guarantee. Beside guarantee we will supply

cost spare parts and free maintenance knowledge .

5. Q: How can you do after sales service ?

A: beside the quality guarantee, our company also regards the after sales service, using a full

arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24
hours on phone / on site technical support / on site service / preventive maintenance also training
again.

6. Q: What’s your payment terms ?

A: 30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also

accepted for us .
