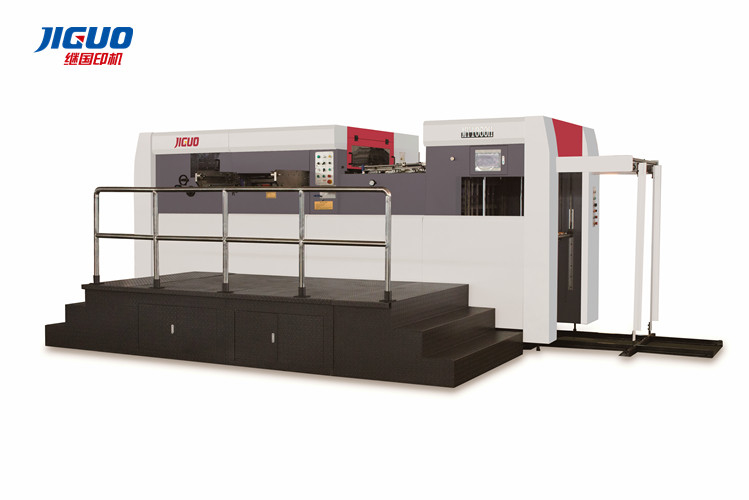

Corrugated Box Paper Automatic Die Cutting Machine 1060X760mm Sheet

Corrugated Box Paper Automatic Die Cutting Machine 1060X760mm Sheet
Corrugated Box Paper Automatic Die Cutting Machine 1060X760mm Sheet Corrugated Box Paper Automatic Die Cutting Machine 1060X760mm Sheet Corrugated Box Paper Automatic Die Cutting Machine 1060X760mm Sheet Corrugated Box Paper Automatic Die Cutting Machine 1060X760mm Sheet

Large Image :  Corrugated Box Paper Automatic Die Cutting Machine 1060X760mm Sheet

Product Details:
Place of Origin: CHINA
Brand Name: JIGUO
Certification: CE
Model Number: MY-1060H
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $100,000 to $180,000/1 Set
Packaging Details: Wrap film or box
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 50 set

Corrugated Box Paper Automatic Die Cutting Machine 1060X760mm Sheet

Description
Weight: 17T Warranty: 1 Year
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation Dimension(l*w*h): (5100+1450)*(2280+1850)*(2230+670)mm
Type: Die-cutting Machine,Paper Cutting Machine Computerized: Yes
Power(w): 21KW Name: Die Cutting Machine
High Light:

Corrugated Box Automatic Die Cutting Machine

,

paper Automatic Die Cutting Machine

,

sheet automatic paper cutting machine

MY-1060H Corrugated Box Cartoon Cardboard Box Automatic Die Cutting Making Machine

1. Automatic Die Cutting Machine is designed for die cutting specially. It suits for more than 80g/m2 paper, cardboard, corrugated paper below 4mm, pasting paper, laminating paper and so on.
2. The machine includes 4 parts: Feeder, paper feed section, main motor and delivery section. And it can finish feeding, die cutting, and collecting work cycle automatically.
3. The feeder is made inTaiwan, it has excellent flexibility, that realize to make a change in the breadth frequently, last and easily.
4. The machine is equipped with automatic lubrication system. And the swing rod and copper tile are all reworked by hand. We scrap the surface and make it full of criss-cross scrath. The groove hold more oil that can ensure smooth going of the operation, and the precision of the pattern.



Products Description​

PARAMETER
Model MY-1060H
Max. sheet size 1060X760(mm)
Min. sheet size 400X360(mm)
Max. die cutting size 1040X740(mm)
Max.cutting speed 7500s/h
Die cutting precision ±0.1mm
Sheet thickness

0.1~4mm

Max.pressure 350T
Total power 21kw
Net weight 17T
Overall dimension (5100+1450)X(2280+1850)X(2230+670)mm
Air requirements 0.8Mpa,>0.36m³/min



Advantage

This machine is designed and Manufactured by JIGUO Machinery factory in China. It is designed to efficiently convert various grades of paper and carton at high speed with minimal set up times and for ease of operation, and at economic price.

Advanced and abundant configuration, such as high-precision indexing mechanism, pneumatic plate-lock system, pneumatic clutch, ensures stable and high-speed running of the machine. This machine is equipped with practical and reliable mechanisms, such as pre-stacking device, secondary feeding device, automatic timing lubrication device, and cooling facility for gearbox, which ensure the excellent performance of the machine.This automatic die-cutting machine can be equipped with a waste removal function, which is suitable for Cigarette Boxes,Jigsaw Puzzle,Wine Boxes,Plastic Boxes,Hangtags,Paper Boxes,Corrugated Boxes,Adhensive Stickers,etc.



Corrugated Box Paper Automatic Die Cutting Machine 1060X760mm Sheet 0

Corrugated Box Paper Automatic Die Cutting Machine 1060X760mm Sheet 1

Corrugated Box Paper Automatic Die Cutting Machine 1060X760mm Sheet 2



Corrugated Box Paper Automatic Die Cutting Machine 1060X760mm Sheet 3

  Corrugated Box Paper Automatic Die Cutting Machine 1060X760mm Sheet 4

FAQ

1.Q:Are you trading company or manufacturer?

A: We are manufacturer, and also provide the business solution to all the friends.

2. Q:What is your delivery time ?

A:Normal delivery time is 30-55working days beside less stock model after received your deposit .

3. Q: Can you help us to buy other goods?

A: Sure of that, it is our honor to work for you, and control the goods quality.

4. Q:How was your machine warranty ?

A:our all machines has one and half year (18mouthes) guarantee. Beside guarantee we will supply

cost spare parts and free maintenance knowledge .

5. Q:How can you do after sales service ?

A:beside the quality guarantee, our company also regards the after sales service, using a full

arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24
hours on phone / on site technical support / on site service / preventive maintenance also training
again.

6. Q:What’s your payment terms ?

A:30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also

accepted for us .
