Product Details:
|
| Weight: | 11T | Warranty: | 1 Year |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation | Dimension(l*w*h): | 5600*3500*2000mm |
| Type: | Die-cutting Machine,Paper Cutting Machine | Computerized: | Yes |
| Power(w): | 15KW | Name: | Automatic Die Cutting & Creasing Machine |
| Speed: | 9000s/h | Max.Paper Size: | 880*610mm |
| High Light: | Automatic Paper Die Cutting Machine,sheet Automatic Paper Die Cutting Machine,die cutting stripping machine |
||

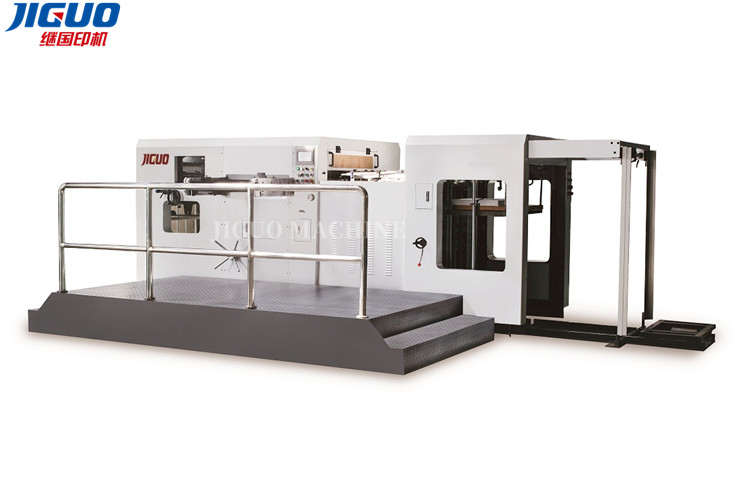

MY-880Fast Fully Automatic Die Cutting And Creasing Machine With Full Stripping,Automatic Paper Die Cutting Machine
Advantage
1. Which adopts high technology with gear main drive can run max speed 10000s/h, shorter
preparation process and perfect quality, which professional applies to all kinds of corrugated
board.
2. Paper hold down pressing plate is adjustable to adapt warped board, no double sheets
to ensure continuous and smooth feeding.
3. Front gauge non-stop back and forth adjustable to accommodate variation in gripper
margin.
4. Main drive adopts high quality precision worm gear and toggle system.
5. Centreline system for quick stripping tool set up and change over, compatiable with
centreline Il.
6. Front edge waste removal system removes and transfers waste edge outside the
machine visa conveyor belt.
7. Counter can set based on your products stack request, which will be improve working
efficiency.
8. Motorized upper frame suspending hoister.
Products Description
| PARAMETER | |
| Model | MY-880Fast |
| Max. sheet size | 880X610(mm) |
| Min. sheet size | 320X240(mm) |
| Max. die cutting size | 860X590(mm) |
| Max.cutting speed | 10000s/h |
| Die cutting precision | ±0.1mm |
| Sheet thickness |
0.1~4mm |
| Max.pressure | 250T |
| Total power | 15kw |
| Net weight | 11T |
| Overall dimension | 5600X3500X2000mm |
| Air requirements | 0.8Mpa,>0.36m³/min |
Local details
Feed Section
a. Standard non-stop configuration and pre load unit.
b. Micro-adjustment is available for transversal position of pile table
Feeder
a. Use Taiwan Technology of of high precision feeder head, four suction head and four sent,
b. the suction angle and height can be adjusted according to the deformation of paper
c. Feeder head triple safety protection device to prevent collision. The self-invented air blow
device ensure the paper feeding smoothly
Feeder Table
a. Pull and push integrate side lays. Sheet detect at side and front register.
b. Adopts a double-speed motor for driving, equipped non-stop feeding device
c. The front registering unit can be fine adjustment and with photo detector to detect
double sheet during
Die Cutting Chase
a. Cutting chase turn-over device to actualise short set up of repeat jobs
b. Micro-adjustment of cutting pressure controlled by touch screen.
c. Pneumatic lock up system on die cutting chase to increase efficiency
Collection Parts
a. Separate counting device is available
b. Safety photo-electric devices prevent over-ascending and over-descending of pile.
Exhibition & Clients
FAQ
1. Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to all the friends.
2. Q: What is your delivery time ?
A: Normal delivery time is 30-55working days beside less stock model after received your deposit .
3. Q: Can you help us to buy other goods?
A: Sure of that, it is our honor to work for you, and control the goods quality.
4. Q: How was your machine warranty ?
A: our all machines has one and half year (18mouthes) guarantee. Beside guarantee we will supply
cost spare parts and free maintenance knowledge .
5. Q: How can you do after sales service ?
A: beside the quality guarantee, our company also regards the after sales service, using a full
arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24
hours on phone / on site technical support / on site service / preventive maintenance also training
again.
6. Q: What’s your payment terms ?
A: 30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also
accepted for us .
