Product Details:
|
| Weight: | 12.5T | Warranty: | 1 Year |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation | Dimension(l*w*h): | 6400*3830*2200mm |
| Type: | Foil Stamping & Die Cutting Machine | Computerized: | Yes |
| Power(w): | 53KW | Product Name: | Automatic Foil Stamping And Die Cutting Machine |
| Application: | Stamping,creasing,die Cutting | Function: | Flat Press Creasing Die Cutting And Stamping |
| High Light: | 7500s/h Automatic Hot Foil Stamping Machine,12.5T Automatic Hot Foil Stamping Machine,stamping automatic embossing machine |
||
Advantage
1. Which adopts high technology with chain main drive can run max speed 7500s/h, shorter
preparation process and perfect quality, which professional applies to all kinds of corrugated
board.
2. Paper hold down pressing plate is adjustable to adapt warped board, no double sheets
to ensure continuous and smooth feeding.
3. Front gauge non-stop back and forth adjustable to accommodate variation in gripper
margin.
4. Main drive adopts high quality precision worm gear and toggle system.
5. Centreline system for quick stripping tool set up and change over, compatiable with
centreline Il.
6. Front edge waste removal system removes and transfers waste edge outside the
machine visa conveyor belt.
7. Counter can set based on your products stack request, which will be improve working
efficiency.
8. Motorized upper frame suspending hoister.
| PARAMETER | |

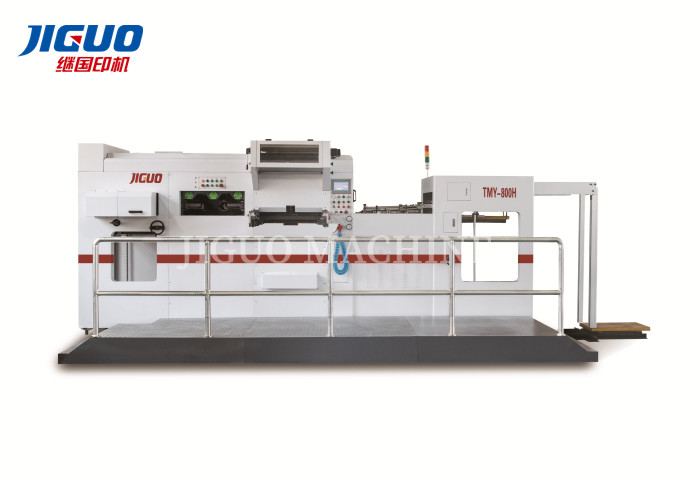

| Model | TMY-800H |
| Max. sheet size | 810X610(mm) |
| Min. sheet size | 320X240(mm) |
| Max. die cutting size | 790X590(mm) |
| Max.stamping range | 750X540(mm) |
| Max.die cutting speed | 7500s/h |
| Sheet thickness |
0.1~1.5mm(Card paper) ≤4mm(corrugated paper) |
| Die cutting precision | ±0.1mm |
| Stamping tempreture | 0-200℃ |
| Heating plate zone number | 10 |
| NO.of foil rollers | 3 longitudinal / 2 transversal |
| Max.feeding pile height | 1400mm |
| Max.delivery pile height | 1200mm |
| Max.pressure | 250T |
| Total power | 53kw |
| Total weight | 12.5T |
| Overall dimension | 6400X3830X2200mm |
| Air requirements | 0.8Mpa,>0.36m³/min |
Feeding Positioning Section: The incline-type paper moving table top is more suitable to
high-speed thin paper and location. Side location adopt dual purpose side device with pull
and push, according to paper choose, it makes switch easier.It could switch front rise position
arriving reduction of speed device, it is benefit of thin paper’s locaton.
The Main Chain: The main chain of toothpicks are all imported pure german iwis high-quality
chain,made in germany.
● Improve the tooth row body strength, reduce the noise, movable tooth, tooth fixation to make
improvement, suitable for a mouth or mouth work.
● Improve the side lay strength, the service life of wearing parts are fully extended and security.
● Enhance the feeding speed change mechanism, make the paper more accurate positioning,
can guarantee the processing of thick paper, and is more suitable for tissue paper.
● The redesigned steel plate frame, the rack structure, lock frame plus limiting device, so it is
more conducive to processing, handling more convenient.
● The front lay to adjust the bevel gear transmission mode. Position the side on the operation
surface for fixed side location, and commonly used operator side pull lay to adapt. A movable
side positioning device is on the drive surface side, using the guide column, which is very
favorable on the accuracy of the side positioning.
● The stamping part adopts the high performance motion controller, centralized control. Jump
smoothly and accurately.
Application
This foil stamping & die-cutting machine is suitable for Cigarette Boxes,Wine Boxes,Plastic
Boxes,Hangtags,Paper Boxes,Corrugated Boxes,etc.
FAQ
1. Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to all the friends.
2. Q: What is your delivery time ?
A: Normal delivery time is 30-55working days beside less stock model after received your deposit .
3. Q: Can you help us to buy other goods?
A: Sure of that, it is our honor to work for you, and control the goods quality.
4. Q: How was your machine warranty ?
A: our all machines has one and half year (18mouthes) guarantee. Beside guarantee we will supply
cost spare parts and free maintenance knowledge .
5. Q: How can you do after sales service ?
A: beside the quality guarantee, our company also regards the after sales service, using a full
arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24
hours on phone / on site technical support / on site service / preventive maintenance also training
again.
6. Q: What’s your payment terms ?
A: 30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also
accepted for us .
