Product Details:
|
| Weight: | 9.5T | Warranty: | 1 Year |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation | Dimension(l*w*h): | 5600*3400*2000mm |
| Type: | Die-cutting Machine,Paper Cutting Machine | Computerized: | Yes |
| Power(w): | 14.5KW | Name: | Die Cutting Machine |
| High Light: | Cardboard FlatBed Automatic Die Cutting Machine,Automatic Die Cutting Machine,auto die cutting and creasing machine |
||
* Pressure part is high strength ductile iron QT500-7, special process casting
* High strength, never deform
* The crankshaft is Japan imported advanced alloy steel, through special process
* German SEW manufacturing super abrasion worm, worm gear.
* Accurate pressure regulating system, easy to adjust under the condition of machine running.
* Automatic paper device, ensure the paper in order.
* Equipped electric automatic delivering, it is safe and convenient to deliver paper without stopping machine.
Features
* Main chain protective device.
* Anti-back device.
* Unique lateral positioning design, make each row of grippers in one positioning line.
* Gripper positioning compensation device, ensure the stability of the die cutting precision.
* Adjustable front and back positioning system, accurate positioning and easy adjustment.
* Moving plate scissor cutting, make the pressure is uniform and high.
* German imported torsion limits protector, avoid any damage to the machine caused by an emergency, and ensure machine safety and personnel safety.
* Convenient knife template turn-over device.
* Power supply lubrication system, main chain microcomputer control automatic intermittent lubrication.
Type :
* Italy kelunbo high precision 240°intermittent mechanism make five rows
* Of grippers to run smoothly, accurate precision and low noise.
* Italy OMPI imported pneumatic clutch device.
* Japan SMC High speed rotary connector
Products Description
| PARAMETER | |

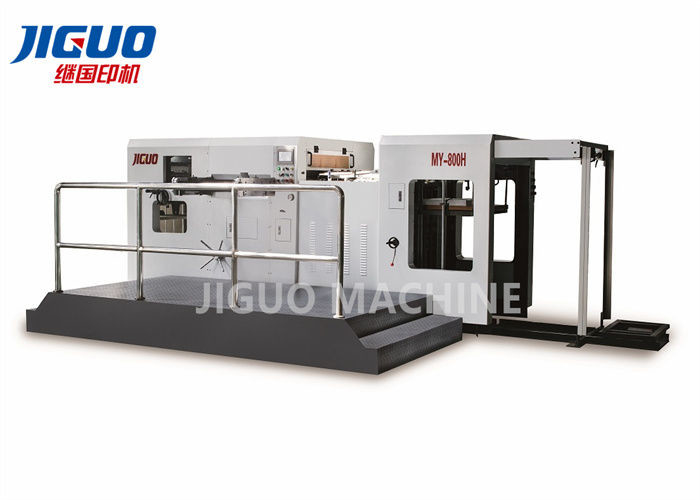

| Model | MY-800H |
| Max. sheet size | 810X610(mm) |
| Min. sheet size | 320X240(mm) |
| Max. die cutting size | 790X590(mm) |
| Max.cutting speed | 8500s/h |
| Die cutting precision | ±0.1mm |
| Sheet thickness |
0.1-1.5mm(Card paper) ≤4mm(corrugated paper) |
| Max.pressure | 250T |
| Total power | 14.5kw |
| Net weight | 9.5T |
| Overall dimension | 5600X3400X2000mm |
| Air requirements | 0.8Mpa,>0.36m³/min |
Local Display
Application
This automatic die-cutting machine can be equipped with a waste removal function, which
is suitable for Cigarette Boxes,Jigsaw Puzzle,Wine Boxes,Plastic Boxes,Hangtags,Paper
Boxes,Corrugated Boxes,Adhensive Stickers,etc.
FAQ
1. Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to all the friends.
2. Q: What is your delivery time ?
A: Normal delivery time is 30-55working days beside less stock model after received your deposit .
3. Q: Can you help us to buy other goods?
A: Sure of that, it is our honor to work for you, and control the goods quality.
4. Q: How was your machine warranty ?
A: our all machines has one and half year (18mouthes) guarantee. Beside guarantee we will supply
cost spare parts and free maintenance knowledge .
5. Q: How can you do after sales service ?
A: beside the quality guarantee, our company also regards the after sales service, using a full
arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24
hours on phone / on site technical support / on site service / preventive maintenance also training
again.
6. Q: What’s your payment terms ?
A: 30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also
accepted for us .
