Product Details:
|
| Certification: | CE,SGS,ISO9001,Gold Supplier | Max.Diameter Of Paper: | 1650mm(65〃)Max |
|---|---|---|---|
| Max.Width Of Paper: | 1400mm(55〃)Max | Total Power: | 38KW |
| Cutting Length: | 400-1600mm | Cutting Accuracy: | +/-1mm |
| Maximum Cutting Speed: | 300cuts/min | Maximum Cutting Meter Speed: | 300m/min |
| Warranty: | One Year | Computerized: | Yes |
| Product Name: | Paper Sheeter Machine,Crosscutting Type Roll Sheeter A4 Paper Cutting Machine Price,Jumbo Paper Roll Sheeter Machine Paper Roll Cutting Sheeting Machine | Application: | Industrial Paper Cutting Machine,paper Cut Size Sheeter |
| High Light: | Reel roll to sheet cutting machine,1400mm roll to sheet cutting machine,550GSM automatic paper roll cutting machine |
||

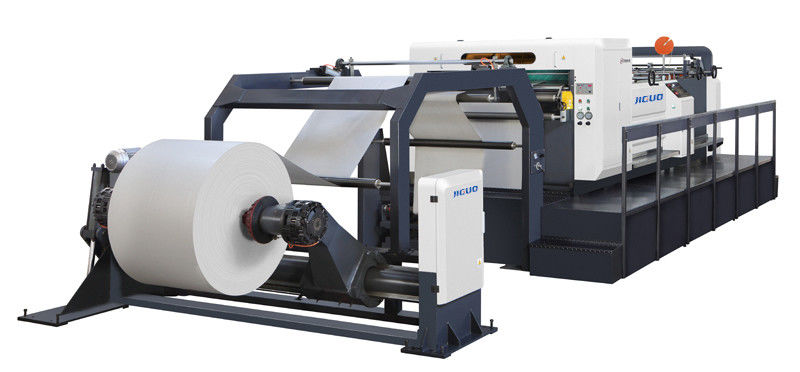

ZWC-1400-1 Automatic 1 Roll High Speed Paper Roll Cutter Jumbo Reel To Sheet Cutting Machine
JIGUO ZWC-1400/1700/1900 Automatic 1 Roll High Speed Paper Roll Cutter Jumbo Reel To Sheet Cutting Machine apply the advanced technique of Germany and England, the machine computer control system apply Inovance Servo motor and AC transducer which are both international of Top brand. The conveyer belts apply NITTA from Japan. The pneumatic vibrator apply FINDEVA from Switzerland .the electrical system adopts SCHNEIDER & OMRON, it leads to the speed of cutting paper is so fast and stable. Germany precise bearing and cutting knife assure the high cutting precision. The controller of soft-touch computer screen is simple and convenient by operation. The anti-curve rack assures the paper flat. This machine is the paper processing machine which is very popular in the paper making and printing industry..
Parameter:
| Model: | JIGUO ZWC-1100/1400/1700/1900 |
| Cutting Mode: | Double rotary knife |
| Paper Cutting Thickness: | 60-550GSM |
| Cutting Precision: |
Cutting length≤1000mm: +/-0.5mm; Cutting length>1000mm: +/-0.1% |
| Max Cutting Frequency: | 300 cutting stroke/min |
| Max Cutting Speed: | 300m/min |
| Cutting Range: |
400-1450mm(ZWC-1100), 400-1600mm(ZWC-1400/1700) |
| Max Unwinding Diameter: | 1650mm |
| Max Paper Cutting Width: | 1100mm/1400mm/1700mm |
| Gross Weight: | 10000kg/17000kg/19000Kg |
Features:
1, High speed rotary cutting knife
2, Elimination system
3, Middle slitting and waste collection system
4, Automatic counting and label inserting device
5, Paper transporting equipment
6, Automatic paper trimming and collecting system
7, Electric control unit
8, Double arm oil hydraulic shaftless mill roll stand
9, Automatic paper tension controller
10, Automatic vacuum system
11, Web guiding system
12, Photo senor registration tracking system
13, LCD control panel
14, AC servo motor
