Automatic Foil Stamping Hot Embossing &Die-cutting & Stripping Machine 600 TON

Certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
China Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. ) certification
I'm Online Chat Now

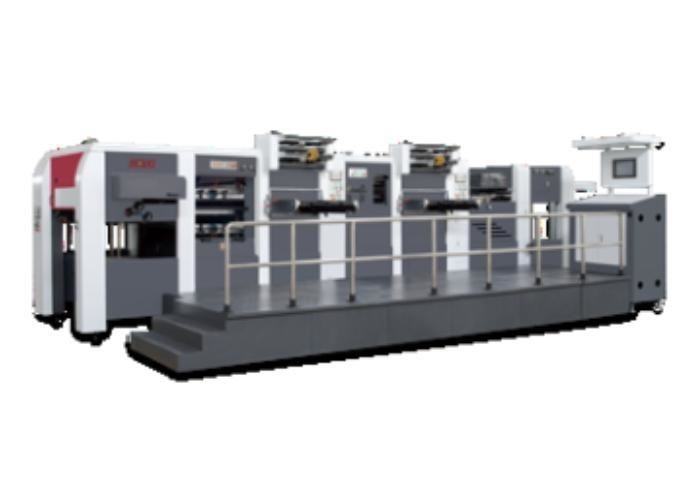

Automatic Foil Stamping Hot Embossing &Die-cutting & Stripping Machine 600 TON

Automatic Foil Stamping Hot Embossing &Die-cutting & Stripping Machine 600 TON
Automatic Foil Stamping Hot Embossing &Die-cutting & Stripping Machine 600 TON
Automatic Foil Stamping Hot Embossing &Die-cutting & Stripping Machine 600 TON Automatic Foil Stamping Hot Embossing &Die-cutting & Stripping Machine 600 TON Automatic Foil Stamping Hot Embossing &Die-cutting & Stripping Machine 600 TON Automatic Foil Stamping Hot Embossing &Die-cutting & Stripping Machine 600 TON

Large Image :  Automatic Foil Stamping Hot Embossing &Die-cutting & Stripping Machine 600 TON

Product Details:
Place of Origin: CHINA
Brand Name: JIGUO
Model Number: 2TTP-1060High
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: $10000 to $5330000/1 Set
Packaging Details: standard packaging
Delivery Time: 45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 sets per month

Automatic Foil Stamping Hot Embossing &Die-cutting & Stripping Machine 600 TON

Description
Max.Paper Size: 1070*770mm Min. Paper Size: 400*360mm
Max.Die-cutting Size: 1040*750mm Max. Stamping Range: 1030*740mm
Max.Running Speed: 7000s/h Die-Cutting Precision: ±0.1mm
Stamping Tempreture: 0~200℃ Max.Pressure: 600 Ton
Max.Feeding Pile: 1600mm Max.Delivery Pile: 1400mm
High Light:

Hot Embossing Automatic Foil Stamping Machine

,

600 TON Automatic Foil Stamping Machine

,

Die-cutting Automatic Foil Stamping Machine

Automatic Foil Stamping &Hot Embossing &Die-cutting & Stripping Machine

Main Features:

Double press in one step.
Is key equipment for printing finishing such as die cut , crease and embossing etc. Electrical components and driving elements of internationally known brands to ensure die cutting precision and reliability of running . Also man - machine interface is able to monitor machine running status , Unique drive gears are adopted such as high - precision indexing mechanism , pneumatic closed Up , pneumatic clutch , overload protection , automatic compression relief etc , to ensure stable and high speed running of the machine . This machine is equipped with practical and reliable mechanisms such as pre - stack device , secondary delivery mechanisms , manual sampling , etc. which ensure the excellent performance of the machine .

                                                               Automatic Foil Stamping Hot Embossing &Die-cutting & Stripping Machine 600 TON 0



Technical Information

MODEL 2TTP-1060High
Max.paper size 1070*770mm
Min.paper size 400*360 mm
Max.stamping range 1030*740mm
Max.running speed 7000s/h
Die-cutting precision ±0.1mm
Stamping tempreture 0-200℃
Max.pressure 600 TON
Overall dimension 10050*4300*2600mm




















Partial Introduction

1. Paper Feeding Unit

Automatic Foil Stamping Hot Embossing &Die-cutting & Stripping Machine 600 TON 1

The enlarged paper feeding head (Feeder head) has 9 suction nozzles applicable for paper in different thicknesses and 5 paper feeding nozzles which can be independently adjusted for parallel paper feeding. It also has 4 paper lifting nozzles which can move up and down in a large stroke. The large power wind pump provides a high suction force. It can be conveniently adjusted; paper can be divided reliable, and it runs fast and stably.



2.Paper Conveying Unit

Automatic Foil Stamping Hot Embossing &Die-cutting & Stripping Machine 600 TON 2

                    Paper is positioned by a pushing unit and a pulling unit which can be shifted

                                             conveniently for different specifications of paper.



3.Die-cutting Unit

Automatic Foil Stamping Hot Embossing &Die-cutting & Stripping Machine 600 TON 3

■ The cast wall plate is rejected because of its low pulling force but high deformation, and steel wall plate is applied like Japan machines. The pulling force is enlarged, i.e. the pressing force is enlarged, and it becomes firm and endurable without any deformation.

■ This machine is upgraded to a brand high level by the automatic pressure regulation and automatic front scale regulation. The addition of this function upgrades it into a convenient and favorable digital device with high controlling speed.

■ The oil route is forcibly lubricated by a oil pump as made in Taiwan to reduce wearing, an oil cooler is added to cool the lubricating oil, and the main chain is lubricated timely to improve the operation efficiency.

                   ■ The novel transmission mechanism provides high speed die-cutting, and the highly

precise swing link platform improves the padding speed (almost without padding), as it is known the pressure can be hardly balanced in most of other common machines.

■ The pneumatic plate locking unit can fix the upper frame more firmly and faster. In our die-cutting machine, the front, back, left and right are pneumatically locked simultaneously to realize a high correctness and a high speed. However, common machines are tightened by screws.

■ The paper holding rack chain is imported from Germany, which provides a long service life and a stable die-cutting precision.

■ The Taiwan intermittent mechanism is the main transmission part of the die-cutting machine, and it improves the die-cutting speed and precision and reduces the device noise, while the speed and precision cannot be realized by any domestic mechanism.

■ The torque limiter is equipped with overload protection. The primary and secondary units can be separated at any overload to ensure the machine can be operated safely. The Italian pneumatic brake and clutch with rotary joint comply with the European standard. They provide fast clutching, high and stable force, long service life and low noise.



4.Main Transmission Section

Automatic Foil Stamping Hot Embossing &Die-cutting & Stripping Machine 600 TON 4

The German machine usually adopts the gear type synchronous belt drive, and the Japanese machine usually uses the main chain drive. This machine design adopts the advanced technology of the tooth synchronized with the high grade German model. Compare with chain design, performance has been greatly improved. Noise reduction is the essential function of the high end type, with the gear type synchronous belt drive, stable,safe,no noise and long life. Avoids the defects that are easy to vibrate and stretch when the chain is used.



5. Gripper bar

Automatic Foil Stamping Hot Embossing &Die-cutting & Stripping Machine 600 TON 5

                7 gripper bars made of cutting edge latest technology running extremely smoothly,

               thanks to the unique design of large motion angle eccentric worm gear drive system.



6. Auto lubrication system

Automatic Foil Stamping Hot Embossing &Die-cutting & Stripping Machine 600 TON 6

Adopt concentrated auto lubrication system to make sure the driven parts working better.



Exhibition

   You can find JIGUO die cutting booths at Shanghai exhibition, Beijing exhibition, Guangzhou exhibition,

      Malaysia exhibition, Egypt exhibition, Turkey exhibition, Indonesia exhibition, Drupa exhibition, etc.

Automatic Foil Stamping Hot Embossing &Die-cutting & Stripping Machine 600 TON 7



Workshop

The neat and orderly, high-configuration equipment and internationally standardized production workshop provide guarantee for high-quality die cutting machines.

Automatic Foil Stamping Hot Embossing &Die-cutting & Stripping Machine 600 TON 8



Shipping

On-time delivery is our principle

Automatic Foil Stamping Hot Embossing &Die-cutting & Stripping Machine 600 TON 9



Part of Customer Projects

We thank our customers for their trust and support for our JIGUO Group. We look forward to in-depth technical exchanges and cooperation with packaging companies from all over the world.

Automatic Foil Stamping Hot Embossing &Die-cutting & Stripping Machine 600 TON 10



FAQ
Q1: Are you a manufacturer or a trading company?
A: We have our own factory in Tangshan, Hebei Province.

Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.

Q3. What is the production time while placing order?
A: Normally about 20-30 days.

Q4. What is the delivery time?
A: 35-50days after deposit.

Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.

Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.

Q7. How about the machine installation and training?
A: 1) We provide training in our factory for free; 2) We can send technicians (engineers) to your factory for installation and training. You shall pay round trip air fare and accommodations, plus each technician charges USD100/per day.

Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock.For special model,we need 20-30 days to produce for you.

Q9. How can you assure the machines' quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.

Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material

Q11. What's the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. Also accept payment by West Union or L/C at sight.

Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.

Q13. How many years are you in printing field?
A: JIGUO factory is more than 20years.
