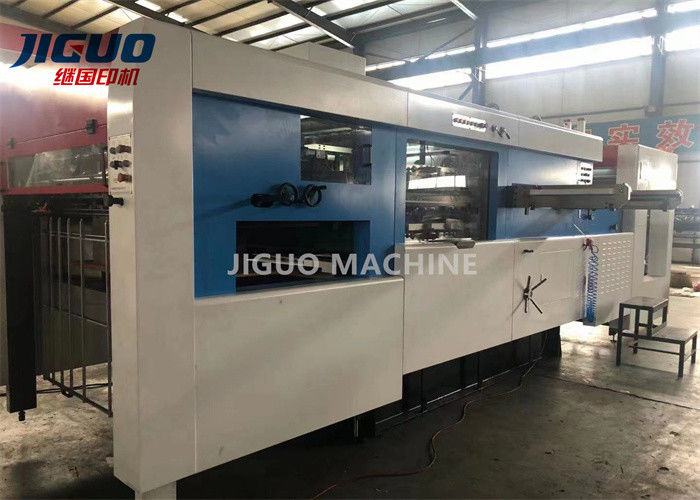

Product Details:
|
| Weight: | 18T | Warranty: | 1 Year |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation | Dimension(l*w*h): | 7500*4600*2260mm |
| Type: | Die-cutting Machine,Paper Cutting Machine | Computerized: | Yes |
| Power(w): | 20KW | Name: | Die Cutting Machine |
Main Features
1. Equipped with pneumatic clutch and pneumatic locking plate.
2. Lead edge feeding paper. The high-speed and high precision paper feeding device can transmit all kinds of corrugated paper whenever how the quality of paper is. Equipped with light-adjusted device and has suitable ability.
3. Automatic adjusting paper feeding, paper collecting and paper aligning.
4. Automatic gripper type equipped the tooth row, open bite adjustable, under the help of paper, cardboard can run smoothly. Automatic suction suck about using leading edge of paper, tooth row gripper-style, curved cardboard and tissue paper can also be passed no scratches.
5. Pneumatic take samples when machine working, can check the die cutting effect at any time.
6. Dusting air guns, can effectively remove the template, and dust inside the device.
7. Automatic lubricating can add lubricating oil on the chain gear according to time, extended the working life of machine
8. Using alarm bells agencies in warning tone when the device is turned to raise safety warning.
9. Equipped with a precision of detection (Taiwan Riko) fiber optic switch, the paper is in place to detect and avoid paper waste.
Products Description
| PARAMETER | |||
| Model | MY-1320X | MY-1500X | MY-1680X |
| Max. sheet size | 1320X960(mm) | 1500X1105(mm) | 1680X1235(mm) |
| Min. sheet size | 450X465(mm) | 500X465(mm) | 580X500(mm) |
| Max. die cutting size | 1300X940(mm) | 1480X1090(mm) | 1660X1220(mm) |
| Max.cutting speed | 6000s/h | 5500s/h | 5000s/h |
| Die cutting precision | ±0.15mm | ±0.18mm | ±0.2mm |
| Sheet thickness |
200-2000g/㎡(Cardboard) ≤10mm(corrugated board) |
250-2500g/㎡(Cardboard) ≤10mm(corrugated board) |
250-2500g/㎡(Cardboard) ≤10mm(corrugated board) |
| Max.pressure | 380T | 400T | 480T |
| Total power | 25kw | 25kw | 26kw |
| Net weight | 20T | 22T | 24T |
| Overall dimension | 6750X4600X2260mm | 7600X5100X2260mm | 8000X5450X2500mm |
| Air requirements | 0.8Mpa,>0.36m³/min | 0.8Mpa,>0.36m³/min | 0.8Mpa,>0.36m³/min |
Advantage
FAQ
1. Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to all the friends.
2. Q: What is your delivery time ?
A: Normal delivery time is 30-55working days beside less stock model after received your deposit .
3. Q: Can you help us to buy other goods?
A: Sure of that, it is our honor to work for you, and control the goods quality.
4. Q: How was your machine warranty ?
A: our all machines has one and half year (18monthes) guarantee. Beside guarantee we will supply
cost spare parts and free maintenance knowledge .
5. Q: How can you do after sales service ?
A: beside the quality guarantee, our company also regards the after sales service, using a full
arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24
hours on phone / on site technical support / on site service / preventive maintenance also training
again.
6. Q: What’s your payment terms ?
A: 30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also
accepted for us .
