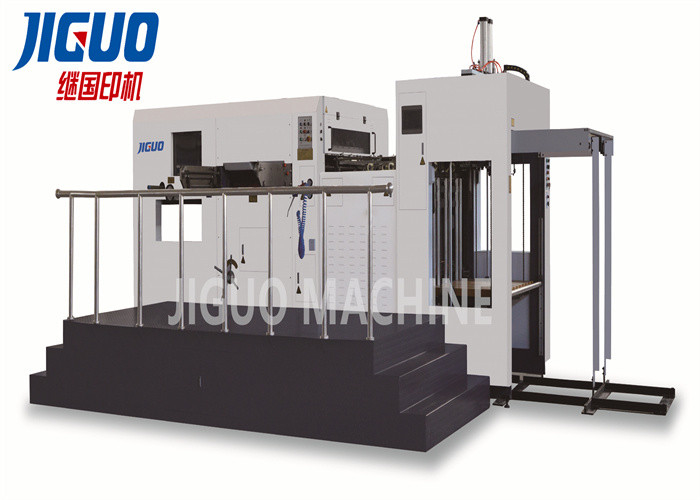

Best Sale MY-1320E/1500E/1680E Feeder Feeding Automatic Die Cutting & Creasing Machine

Name: Best Sale MY-1320E/1500E/1680E Feeder Feeding Automatic Die Cutting & Creasing Machine
Brand: Sino Jiguo Machinery Co., Ltd. (Tangshan Jiguo Printing Machinery Co., Ltd. )
SKU: MY-1320E/1500E/1680E
Price: 50.00 USD
Availability: InStock

Brand Name:	JIGUO
Model Number:	MY-1320E/1500E/1680E
MOQ:	1 set
Price:	$100,000 to $200,000/1 Set
Delivery Time:	45 days
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Weight:

18T

Warranty:

1 Year

After-sales Service Provided:

Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation

Dimension(l*w*h):

7500*4600*2260mm

Type:

Die-cutting Machine,Paper Cutting Machine

Computerized:

Yes

Power(w):

20KW

Name:

Die Cutting Machine

Packaging Details:

Wrap film or box

Supply Ability:

50 set

Highlight:

Automatic Die Cutting Creasing Machine

Product Description

Best Sale MY-1320E/1500E/1680E Feeder Feeding Automatic Die Cutting & Creasing Machine

Products Description

PARAMETER
Model	MY-1320E	MY-1500E	MY-1680E
Max. sheet size	1320X960(mm)	1500X1105(mm)	1680X1235(mm)
Min. sheet size	450X400(mm)	500X420(mm)	580X500(mm)
Max. die cutting size	1300X940(mm)	1480X1090(mm)	1660X1220(mm)
Max.cutting speed	6000s/h	5000s/h	4500s/h
Die cutting precision	±0.15mm	±0.18mm	±0.2mm
Sheet thickness	200-2000g/㎡(Cardboard) ≤8mm(corrugated board)	250-2500g/㎡(Cardboard) ≤8mm(corrugated board)	250-2500g/㎡(Cardboard) ≤8mm(corrugated board)
Max.pressure	380T	400T	480T
Total power	20kw	20kw	20kw
Net weight	18T	20T	23T
Overall dimension	7500X4600X2260mm	7990X5100X2260mm	8900X5450X2500mm
Air requirements	0.8Mpa,>0.36m³/min	0.8Mpa,>0.36m³/min	0.8Mpa,>0.36m³/min

Advantage

Die-cutting unit eliminated castings wallboard due to casting wallboard has small pull, large deformation and without limitation, instead it uses steel wallboards like Japan. To increase pulling force is to increase pressure, and it is strong and durable, changeless form.
Automatic pressure control make the machine achieve new successes. This added functions, make it become the digital equipment, handling fast, convenient to use.
Taiwan high-pressure oil pump, use crush type for lubrication, reducing parts attrition and increasing oil temperature cooler to lubricant for cooling, on the main chain for regular lubrication, improve equipment efficiency.
It has novel drive mechanism, execute high-speed die-cutting, high accuracy of swinging rod platform and improve the pad speed (almost don't need mat), we should know, a lot of manufacturers exist pressure uneven problem.
Pneumatic locking plate device has firmer upper frame, saving time. Our company produces the die-cutting machine simultaneously to nether frame around for air lock, leading to strong accuracy, speed fast. All other manufacturers are just using screw fastening.

Best Sale MY-1320E/1500E/1680E Feeder Feeding Automatic Die Cutting & Creasing Machine 0

Best Sale MY-1320E/1500E/1680E Feeder Feeding Automatic Die Cutting & Creasing Machine 1

Best Sale MY-1320E/1500E/1680E Feeder Feeding Automatic Die Cutting & Creasing Machine 2

Best Sale MY-1320E/1500E/1680E Feeder Feeding Automatic Die Cutting & Creasing Machine 3

Best Sale MY-1320E/1500E/1680E Feeder Feeding Automatic Die Cutting & Creasing Machine 4

Best Sale MY-1320E/1500E/1680E Feeder Feeding Automatic Die Cutting & Creasing Machine 5

Best Sale MY-1320E/1500E/1680E Feeder Feeding Automatic Die Cutting & Creasing Machine 6

Best Sale MY-1320E/1500E/1680E Feeder Feeding Automatic Die Cutting & Creasing Machine 7

FAQ

1.Q: Are you trading company or manufacturer?

A: We are manufacturer, and also provide the business solution to all the friends.

2. Q: What is your delivery time ?

A: Normal delivery time is 30-55working days beside less stock model after received your deposit .

3. Q: Can you help us to buy other goods?

A: Sure of that, it is our honor to work for you, and control the goods quality.

4. Q: How was your machine warranty ?

A: our all machines has one and half year (18monthes) guarantee. Beside guarantee we will supply

cost spare parts and free maintenance knowledge .

5. Q: How can you do after sales service ?

A: beside the quality guarantee, our company also regards the after sales service, using a full

arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24
hours on phone / on site technical support / on site service / preventive maintenance also training
again.

6. Q: What’s your payment terms ?

A: 30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also

accepted for us .
