Product Details:
|
| Max. Paper Size: | 1070×770mm | Min. Paper Size: | 400×360mm |
|---|---|---|---|
| 400×360mm: | 1040×750mm | Max. Cutting Speed: | 6500s/h |
| Weight: | 21T | Warranty: | 1 Year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation | Dimension(l*w*h): | 8200*4100*2420mm |
| Type: | Die-cutting Machine,Paper Cutting Machine,Embossing Paper Die Cutting | Computerized: | Yes |
| Power(w): | 62KW | Name: | Automatic Hot Embossing Die Cutting And Stripping Machine |
| High Light: | Hot Embossing paper stripping machine,1070×770mm paper stripping machine,6500s/h paper feeding machine |
||

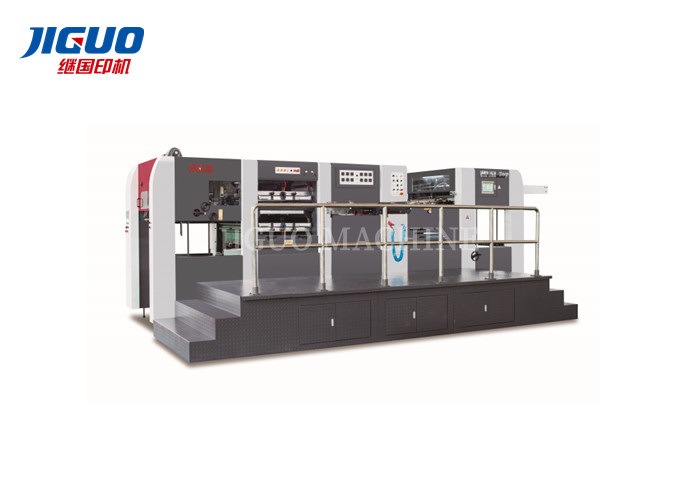

Automatic hot embossing & die cutting & stripping machine is new generation of high precision and high effective innovative products,which has 900 tons pressuremainly suitable for hot stamping all kinds of colored aluminum foil, pressing the concave and convex and cutting various pictures trademarks, product catalog advertising, cartons, books, cover, new year cards and other decorating, printing products. Ideal processing equipment for the printing, packaging and plastic industries
1. Sliding bearings are made of high quality alloy copper, thus to enhance the effect of anti-frication and vibration reducing.
2. There are independent speed motor in feeding and delivery device to make feeding and delivery more convenient and practical
3. The roller used aluminum alloy material,Processed through a special process. It has light weight but high precision, reduce the running load to extend service life
4. Stepping motor has large torque,can be set to the desired size,to be accurate, stable, reduce waste having upper and lower delay, traveling ,jogging and the temperature control etc
5. Optional honeycomb board to make heating more evenly and quickly, easy to adjust plate .Heating adopt stainless steel,more durable
6. Central lubrication system guarantees fine lubrication and reduces friction
7. High strength due to whole iron casting by using high quality material for machine body.
8. Safety protection system is reliable.
| PARAMETER | |
| Model | MYRP-1060Deep |
| Max. sheet size | 1070X770(mm) |
| Min. sheet size | 400X360(mm) |
| Max. die cutting size | 1040X750(mm) |
| Max.cutting speed | 6500s/h |
| Die cutting precision | ±0.1mm |
| Sheet thickness |
0.1~4mm |
| Die-cutting Pressure | 900T |
| Total power | 62kw |
| Total weight | 21T |
| Stamping Tempreture | 0~199℃ |
| Overall dimension | 8200X4100X2420mm |
| Air requirements | 0.8Mpa,>0.36m³/min |
Application
This automatic die-cutting machine can be equipped with a waste removal function, which
is suitable for Cigarette Boxes,Jigsaw Puzzle,Wine Boxes,Plastic Boxes,Hangtags,Paper
Boxes,Corrugated Boxes,Adhensive Stickers,etc.
Payment & Delivery
Our company has become an internationally famous enterprises with products sold well all
over the country and exported to over 20 countries, including the United States, South
Korea, Russia, India,Thailand, Brazil, Egypt, Greece, Poland, Italy, UK and so on.
Certifications
Our products have passed the ISO9001 quality certification and the CE certification.We have
now grown into a well-known domestic post-press equipment manufacturing expert.
FAQ
1. Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to all the friends.
2. Q: What is your delivery time ?
A: Normal delivery time is 30-55working days beside less stock model after received your deposit .
3. Q: Can you help us to buy other goods?
A: Sure of that, it is our honor to work for you, and control the goods quality.
4. Q: How was your machine warranty ?
A: our all machines has one and half year (18mouthes) guarantee. Beside guarantee we will supply
cost spare parts and free maintenance knowledge .
5. Q: How can you do after sales service ?
A: beside the quality guarantee, our company also regards the after sales service, using a full
arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24
hours on phone / on site technical support / on site service / preventive maintenance also training
again.
6. Q: What’s your payment terms ?
A: 30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also
accepted for us .
