Product Details:
|
| Max. Paper Size: | 1070×770mm | Min. Paper Size: | 400×360mm |
|---|---|---|---|
| Weight: | 20T | Warranty: | 1 Year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation | Dimension(l*w*h): | 7000*4100*2420mm |
| Type: | Die-cutting Machine,Paper Cutting Machine | Computerized: | Yes |
| Power(w): | 62KW | Name: | Automatic Embossing Die Cutting Machine |
| High Light: | Automatic Die Cutting Machine,Embossing Automatic Die Cutting Machine,cardboard die cutting machine |
||
Detailed product description

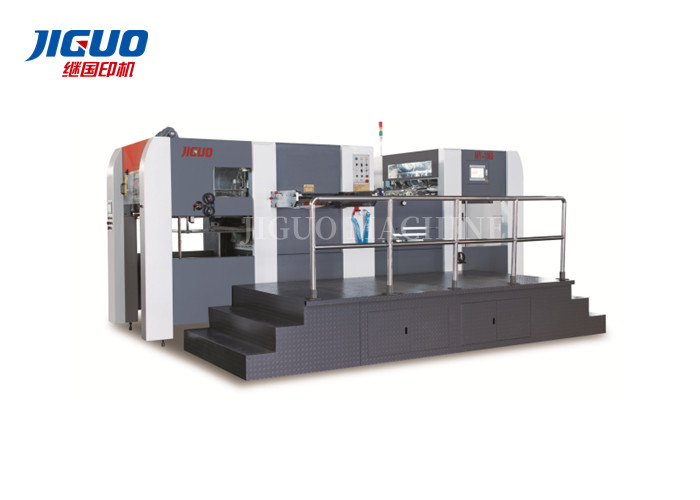

1. The automatic deep embossing die-cutting machine is specially designed for die-cutting, embossing and creasing. It is suitable for cardboard of 60-2000g/m2, corrugated paper with thickness below 4mm, paste paper, laminated paper, etc.
2. The machine consists of 4 parts: paper feeder, paper feeding part, main motor and paper output part. And automatically complete the feeding, die-cutting, embossing, receiving work cycle.
3. The thickened wall has a pressure resistance capacity of 1000 tons, which makes the embossing work clearer and the effect is better. 12 independent heating zones provide 0-199°C temperature for more variation in embossing patterns and higher quality. The cutting pressure of 900 tons makes the pattern more three-dimensional.
4. The machine is equipped with an automatic lubrication system. The pendulum rod and copper tile are all reworked manually. The surface is scrapped and full of criss-cross scratches. The grooves hold more oil, allowing the machine to run smoother and maintain higher and longer precision work.
| PARAMETER | |
| Model | MY-1060Deep |
| Max. sheet size | 1070X770(mm) |
| Min. sheet size | 400X360(mm) |
| Max. die cutting size | 1040X750(mm) |
| Max.cutting speed | 6500s/h |
| Die cutting precision | ±0.1mm |
| Sheet thickness |
0.1~4mm |
| Die-cutting Pressure | 900T |
| Total power | 62kw |
| Total weight | 20T |
| Stamping Tempreture | 0~199℃ |
| Overall dimension | 7000X4100X2420mm |
| Air requirements | 0.8Mpa,>0.36m³/min |
Local Description
FAQ
1. Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to all the friends.
2. Q: What is your delivery time ?
A: Normal delivery time is 30-55working days beside less stock model after received your deposit .
3. Q: Can you help us to buy other goods?
A: Sure of that, it is our honor to work for you, and control the goods quality.
4. Q: How was your machine warranty ?
A: our all machines has one and half year (18mouthes) guarantee. Beside guarantee we will supply
cost spare parts and free maintenance knowledge .
5. Q: How can you do after sales service ?
A: beside the quality guarantee, our company also regards the after sales service, using a full
arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24
hours on phone / on site technical support / on site service / preventive maintenance also training
again.
6. Q: What’s your payment terms ?
A: 30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also
accepted for us .
