Product Details:
|
| Weight: | 20T | Warranty: | 1 Year |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation | Dimension(l*w*h): | 6700*4260*2350mm |
| Type: | Die-cutting Machine,Paper Cutting Machine | Computerized: | Yes |
| Power(w): | 57KW | Name: | Automatic Embossing Die Cutting Machine |
| High Light: | cardboard box packaging machine,cardboard box packaging machine,Paper embossing and die cutting machine |
||

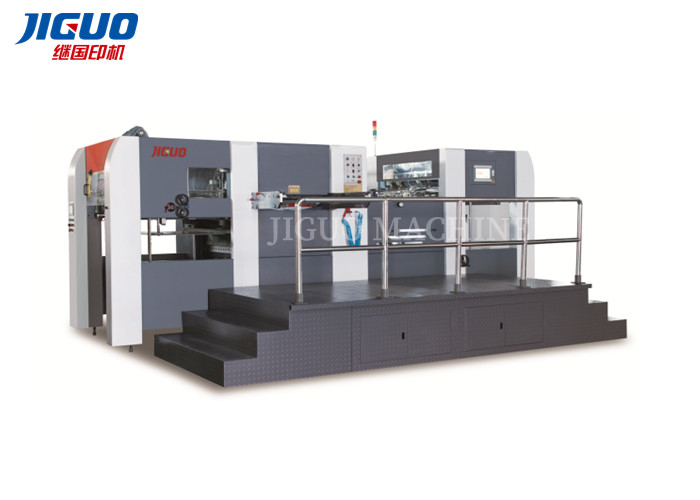

MY-1150High Custom Folding Paper Cardboard Packaging Automatic Embossing And Die Cutting Machine
Product Description
1. The automatic deep-pressing hot stamping die-cutting machine is specially designed for die cutting, hot stamping and embossing. It is suitable for paper above 80g/m2, cardboard, corrugated paper below 4mm, sticker paper, laminated paper, etc.
2. This machine is composed of four parts: feeder, paper feeding part, main motor and paper feeding part, which can automatically complete the working cycle of feeding, bronzing, die-cutting, embossing and receiving.
3. The electrical part is provided by the main motor, and 7 servo motors ensure the bronzing position is accurate and the speed is stable. 12 independent heating zones provide 0-199° temperature, ensuring pattern diversity and fastness. At the same time, the punching size can be made larger and the jumping is smoother. The fastness of the pattern is also very high, with no bubbles, no scorch, and no drape.
4. The pressure resistance of the thickened wall surface is 1000 tons, and 12 independent heating temperature zones make the embossing clearer, make the embossing pattern changeable, and the quality is higher. 600 tons of cutting pressure makes the pattern effect more three-dimensional.
5. The machine is equipped with an automatic lubrication system. The pendulum rod and copper tile are all reworked manually, and the surface is scrapped and full of criss-cross scratches. The groove holds more oil, which can ensure the smooth operation of the operation and the accuracy of the pattern.
| PARAMETER | |
| Model | MY-1150High |
| Max. sheet size | 1180X770(mm) |
| Min. sheet size | 400X360(mm) |
| Max. die cutting size | 1130X750(mm) |
| Max.cutting speed | 7000s/h |
| Die cutting precision | ±0.1mm |
| Sheet thickness |
0.1~4mm |
| Die-cutting Pressure | 600T |
| Total power | 57kw |
| Total weight | 20T |
| Overall dimension | 6700X4260X2350mm |
| Air requirements | 0.8Mpa,>0.36m³/min |
Payment & Delivery
Our company has become an internationally famous enterprises with products sold well all
over the country and exported to over 20 countries, including the United States, South
Korea, Russia, India,Thailand, Brazil, Egypt, Greece, Poland, Italy, UK and so on.
FAQ
1. Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to all the friends.
2. Q: What is your delivery time ?
A: Normal delivery time is 30-55working days beside less stock model after received your deposit .
3. Q: Can you help us to buy other goods?
A: Sure of that, it is our honor to work for you, and control the goods quality.
4. Q: How was your machine warranty ?
A: our all machines has one and half year (18mouthes) guarantee. Beside guarantee we will supply
cost spare parts and free maintenance knowledge .
5. Q: How can you do after sales service ?
A: beside the quality guarantee, our company also regards the after sales service, using a full
arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24
hours on phone / on site technical support / on site service / preventive maintenance also training
again.
6. Q: What’s your payment terms ?
A: 30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also
accepted for us .
