Product Details:
|
| Weight: | 19T | Warranty: | 1 Year |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation | Dimension(l*w*h): | 6700*4100*2350mm |
| Type: | Die-cutting Machine,Paper Cutting Machine | Computerized: | Yes |
| Power(w): | 57KW | Name: | Automatic Hot Embossing Die Cutting Machine |
| High Light: | Hot Embossing corrugated die cutting machine,corrugated die cutting machine,Automatic Box cardboard die cutting machine |
||

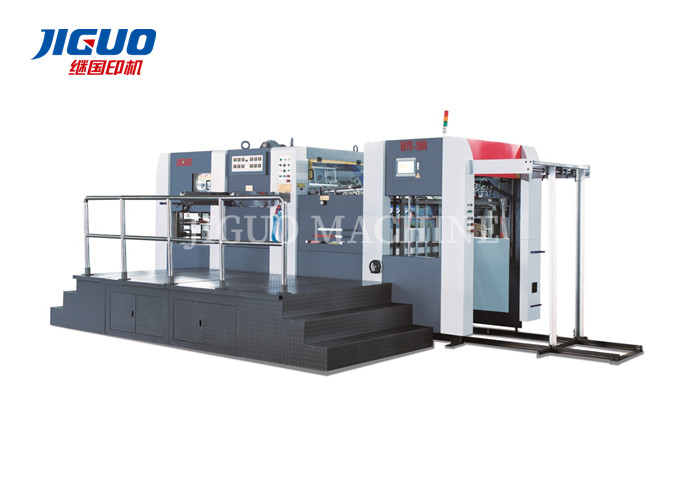

MYR-1060High Corrugated Box Paper Box Automatic Hot Embossing And Die Cutting Machine
Machine Details
Paper Feeding part
Sheet suction feeder high speed and stable. Sheet separator is reliable, There are 4-8 separating suckers can suitable for various paper.
It have a vice feeding mechanism and vice feeding mechanism and vice feeding mechanism transition, which ensure continuous feed on-line.
Paper Tranfering Part
Sheet guide stable, location accurate. In the course of the running, sheet location can be adjusted..
Fix widen conveyer belt us adopted, operator can be adjusted.
Register system is push-pull system, which can be suitable for various paper without change.
Die-cutting and Creassing Part
New drive gear and servounit ensure high speed die cutting.
Overload protective system ensure that driving part and drive part separate when accident overload.
Pneuma-lock plate , air clutch.
Unique die cutting frame prevent from deflecting or separating.
Paper Delivery Part
Delivery is automatic and even.
On-line vice delivery raise the efficiency.
On-line sampling mechanism ensure sampling anytime
Electrical Control Part
Electurically control system adopt computer control, which ensure that feeding, guiding, die cutting and delivery automatic control and real-time detection.
Man-machine interface indication system will show working state, trouble position and shooting.
Safe guarden will alarm when accident, and automatic shut-down.
| PARAMETER | |
| Model | MYR-1060High |
| Max. sheet size | 1070X770(mm) |
| Min. sheet size | 400X360(mm) |
| Max. die cutting size | 1040X750(mm) |
| Max.cutting speed | 7000s/h |
| Die cutting precision | ±0.1mm |
| Sheet thickness |
0.1~4mm |
| Die-cutting Pressure | 600T |
| Total power | 57kw |
| Total weight | 19T |
| Stamping Tempreture | 0~199℃ |
| Overall dimension | 6700X4100X2350mm |
| Air requirements | 0.8Mpa,>0.36m³/min |
Application
This automatic die-cutting machine can be equipped with a waste removal function, which
is suitable for Cigarette Boxes,Jigsaw Puzzle,Wine Boxes,Plastic Boxes,Hangtags,Paper
Boxes,Corrugated Boxes,Adhensive Stickers,etc.
Payment & Delivery
Our company has become an internationally famous enterprises with products sold well all
over the country and exported to over 20 countries, including the United States, South
Korea, Russia, India,Thailand, Brazil, Egypt, Greece, Poland, Italy, UK and so on.
Exhibition & Clients
FAQ
1. Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to all the friends.
2. Q: What is your delivery time ?
A: Normal delivery time is 30-55working days beside less stock model after received your deposit .
3. Q: Can you help us to buy other goods?
A: Sure of that, it is our honor to work for you, and control the goods quality.
4. Q: How was your machine warranty ?
A: our all machines has one and half year (18mouthes) guarantee. Beside guarantee we will supply
cost spare parts and free maintenance knowledge .
5. Q: How can you do after sales service ?
A: beside the quality guarantee, our company also regards the after sales service, using a full
arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24
hours on phone / on site technical support / on site service / preventive maintenance also training
again.
6. Q: What’s your payment terms ?
A: 30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also
accepted for us .
